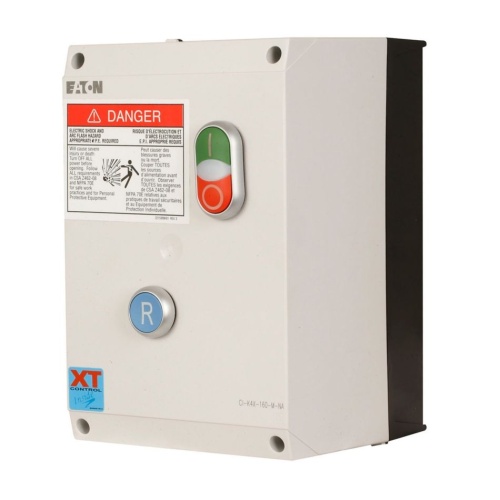

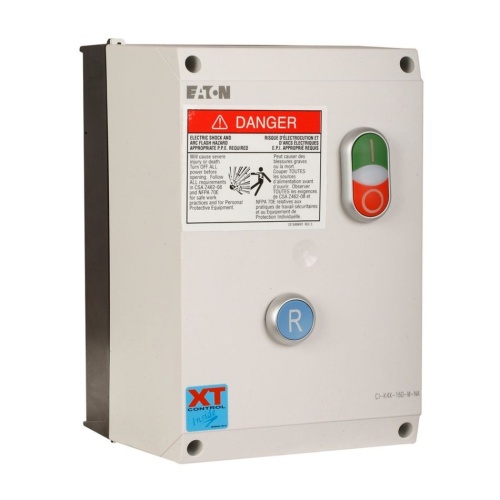

Eaton ECX09H5ABA Non-Reversing Starter - 32 Amp, 120 VAC Coil
Normally In Stock
Code: 353663
Eaton ECX09H5ABA - 120 V - NEMA 4X - Non-combination - 32 A - START/STOP pushbutton - Non-reversing - 0.16-0.25 FLA
Condition: New
Usually ships Same Day or Next Day$1195.78
Sale Price
$996.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton ECX09H5ABA - Eaton's XT IEC Power Control line features certified contactors, starters, and combination motor controllers that conform to global standards. Covering AC and DC control from 12V to 600V, these units offer options like screw/spring cage terminals, reversible/non-reversible types, and built-in auxiliary contacts. Boasting AC-3 contactor ratings up to 1000A, non-reversing starters up to 650A, and an extensive temperature range of -25°C to +50°C (-13°F to +122°F), they are adaptable and reliable. These products facilitate easy installation with plug-in accessories, low-power DC coils, and compatibility with various enclosures (IP23, IP66, etc.). With XT IEC Power Control, dependable power management is at your fingertips.
Specifications
Starter Coil Voltage
120 VAC
Starter Enclosure Type
NEMA 4X
Starter Reversing Capability
Non-Reversing
Starter Amperage
32 Amp
Manufacturer
Eaton
Component
Non-Reversing Starter
Full Load Amperage Range
0.16-0.25 FLA
Features
AC control from 12 V to
600 V 50/60 Hz
DC control from 24 V to
220 V
Available with screw or
spring cage terminals
Reversing or non-reversing
contactors and starters
AC-3 contactor ratings to
1000 A and AC-1 contactor
ratings to 2000 A
Non-reversing starters to
650 A
Panel or DIN rail mounting
to 65 A
IP20 finger and back-ofhand proof
Large ambient temperature
AC and DC controlled
contactors in the same
compact frame
Low power consumption
DC coils
Built-in NO or NC auxiliary
contacts to 32 A
Plug-in accessories for
reduced installation time
Types 1 (IP23), 4 (IP66), 4X
(IP66), 12 (IP65) and 3R
(IP32)
Circuit breakers, fused,
non-fused and noncombination designs
available
Opaque (standard) or clear
covers available on nonmetallic Halyester
enclosure option
