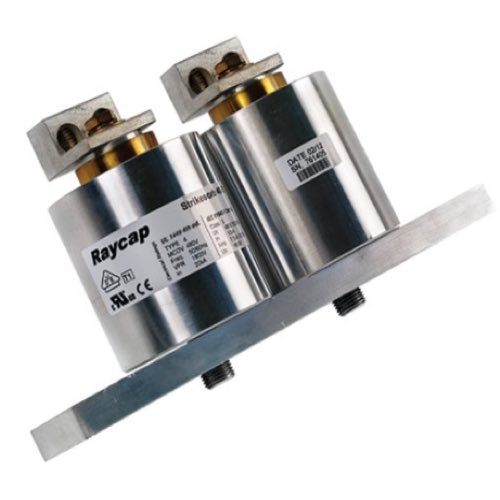

Raycap 110-1388 Strikesorb® 30 Assembly (BA5-3-01-A) - 120 VAC, L-G

Raycap 110-1388: Strikesorb Assemblies offer effective surge protection integration for OEMs across various systems, including motor control equipment and variable frequency drives. Customizable to fit cabinets or existing equipment, Strikesorb 30 is a versatile surge protection device (SPD) with Class I and Class II ratings, providing exceptional lightning and electrical surge protection as per IEC 61643-11. Capable of handling extreme energy from lightning without degradation, Strikesorb ensures continuous safeguarding of critical equipment. This patented technology is inherently safe, eliminating hazardous materials. Tested and certified to international standards (IEC and UL), Strikesorb's proven field performance guarantees a lifetime of over 20 years, backed by a 10-year limited warranty.

Specifications
Surge Protector MCOV	150 VAC
Impulse Discharge Current	60 kA
Surge Protector Line Voltage	120 VAC
Surge Protector Component	Assembly
Direction of Action	L-G
Manufacturer	Raycap
Surge Protector Mount	90° Mounting Tab
Bus Material	Copper
