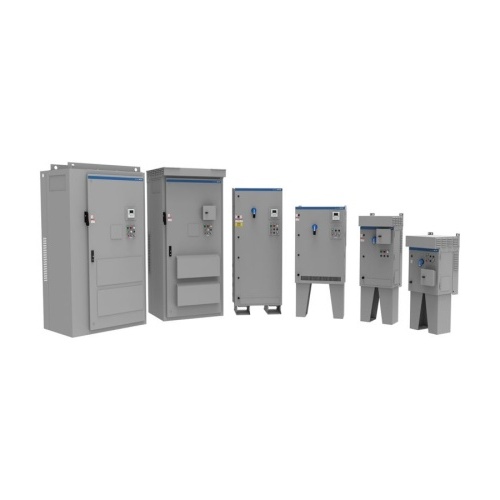

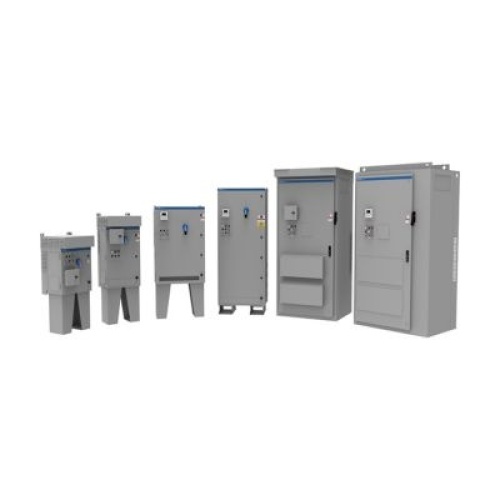

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Eaton EHB1564A1KS0G20000 DH1 - Enclosed Series VFD - 125 HP, 156 Amp
Normally In Stock
Code: 344427
Eaton EHB1564A1KS0G20000 - Input: 480V 3 Phase, Output: 480V 3 Phase, 125 HP, 156 Amp, NEMA 1 - 2 Contactor Bypass - Without Brake - Bypass Light Kit, Bypass Run, Manual Bypass Switch
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$33128.68
Sale Price
$27607.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton EHB1564A1KS0G20000 - Introducing PowerXL DH1 Series Enclosed Drives - a blend of advanced Eaton technology in pre-engineered solutions for HVAC/R applications. These drives prioritize safety with up to 100 kAIC short circuit current ratings and boast industry-leading energy efficiency through the Active Energy Control® algorithm. Meeting HVAC/R standards, they offer diverse protection options, multi-contactor bypass configurations, LED indicators, and NEMA-rated designs for simple deployment. Onboard HVAC/R communications ensure seamless integration with building management systems. With communication protocols like BACnet/IP and Modbus, plenum rating, and various mounting options, DH1 drives provide efficient adaptability for diverse HVAC/R needs. - 82.9" x 24.3" x 31.1" (HxWxD)
Specifications
VFD Amperage Output
156 Amp
VFD Horsepower Output
125 HP
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD NEMA-IP Rating
NEMA 1
Manufacturer
Eaton
VFD Line
DH1 - Enclosed
VFD Brake
No Brake Chopper
Features
Energy optimization: Active energy control algorithm, 5% DC choke, input surge protection, EMI/RFI filter built-in
HVAC communications built-in: BACnet/IP, BACnet MS/TP, Modbus RTU, Modbus/TCP
Easy to use: Startup Wizard, PC Tool software, three built-in applications, diagnostics, auto button, removable keypad with copy/paste functionality
Space savings: Compact size, open Type 12 option, on-board communication and I/O
On-board I/O: Includes built-in, on-board I/O to help eliminate the need for costly option cards, and to work seamlessly right out of the box
Reliability: Low overload (VT) rated, conformal coated boards, durable metal power section, 50°C rating (60°C de-rating), removable keypad rated IP54. Standard NEMA 1/12/3R enclosed offering up to 250hp
Certifications: UL®, CE, cUL®, RoHS, C-Tick
