Code: 340322

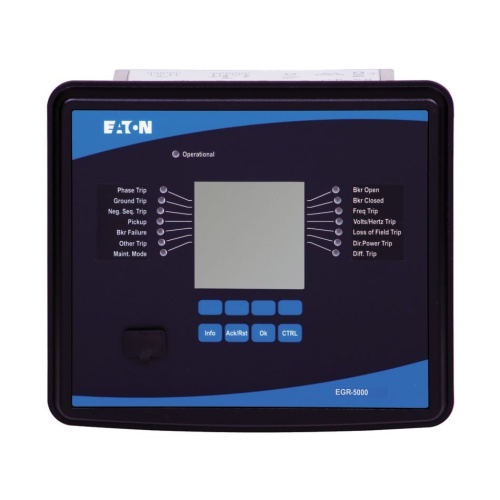

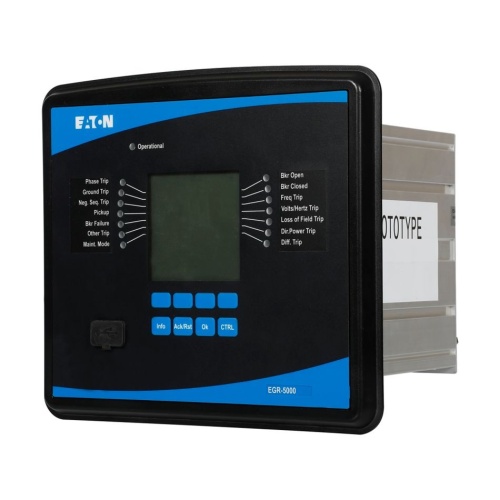

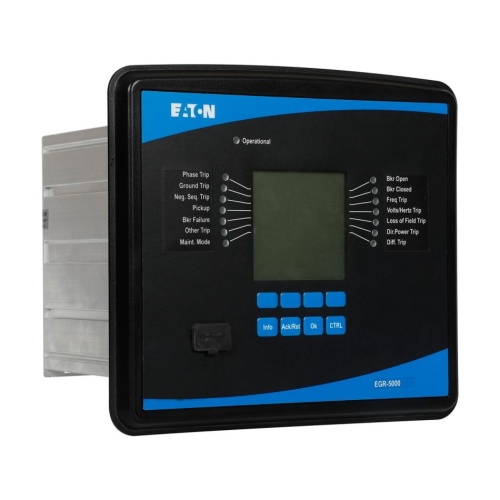

Eaton EGR-5000-2A1CB1 Generator Protection Relay - 16 Inputs 9 Outputs
Normally In Stock
Eaton EGR-5000-2A1CB1 - 5A, 1A, 40-250 Vac, 19-300 Vdc, 16, 9, Removable, Generator, over Ethernet RJ-45,19-300Vdc, 40-250Vac, 50/60 Hz, Projection,Trip Coil Monitor{PIO3},Sensitive Ground Input
Condition: New
Usually ships Same Day or Next Day$18678.94
Sale Price
$15565.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton EGR-5000-2A1CB1 - The EGR-5000 Generator Protection Relay from Eaton is a versatile microprocessor-based solution designed for generators of various sizes, ideal for both primary and backup protection in standby and cogeneration setups. It ensures comprehensive protection, control, monitoring, and metering. Noteworthy features include voltage-controlled and restrained three-phase overcurrent protection, phase-residual and independent ground overcurrent protection, breaker failure detection, voltage and frequency protection, power factor analysis, directional power and vars, loss of excitation and overexcitation protection. It comes with extensive metering capabilities for various electrical parameters. The relay is highly adaptable with programmable logic functions, multiple communication options like RS-485, Ethernet, and support for protocols such as Modbus-RTU, Modbus-TCP, and IEC-61850 - Eaton E-Series Protection Relay Devices now have a warranty extension of 10 years, superseding the previous warranty of 18 months - 8.7" x 9.72" x 8.06" (HxWxD)
Specifications
Relay Load Amperage
5 Amp
Relay Load Amperage
1 Amp
Manufacturer
Eaton
Relay Mounting
Projection
Analog Outputs
0
I/O Options
URTD Interface
I/O Options
Sensitive Ground Input
I/O Options
IRIG-B
Sensing Inputs
Current Protection And Metering
Analog Inputs
0
Inputs
16
Outputs
9
Sensing Inputs
Differential Protection
Sensing Inputs
Voltage Protection And Metering
Sensing Inputs
Power Protection And Metering
I/O Options
Trip Coil Monitor
Component
Generator Protection
Features
Microprocessor-based protection with monitoring and control for medium to large sized generators.
Complete metering of voltage, currents, power, energy, minimum/maximum and demand functions.
Complete metering, protection, and control in a single compact case to reduce panel space, wiring and costs.
Integral test function reduces maintenance time and expense.
Zone selective interlocking improves coordination and tripping time, and saves money compared to a traditional bus differential scheme.
Programmable logic control functions for providing customized protection and control solutions.
Reduce trouble shooting time and maintenance costs- Trip and event recording in non-volatile memory provides detailed information for analysis and system restoration. 6000 cycles of waveform capture aids in post fault analysis (viewable using Powerport-E software)
Minimum replacement time- Removable terminal blocks ideal in industrial environments
Front RS-232 port and Powerport-E software provides local computer access and user-friendly windows based interface for relay settings, configuration, and data retrieval.
Breaker open/close from relay faceplate or remotely via communications.
Fast and easy troubleshooting, improved maintenance procedures and increased device security. Provides detailed traceability for system configuration changes.
Relays self-diagnostics and reporting improves uptime and troubleshooting.
