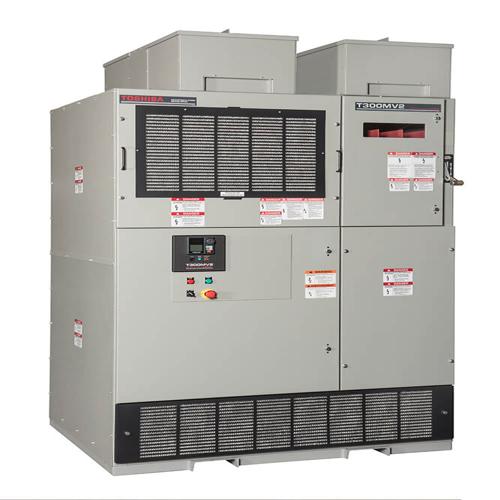

Toshiba M44AN44500AAA0-CR MV2 Series 5000 HP, 620 Amp, 4160 VAC

Toshiba M44AN44500AAA0-CR - The T300MV2® medium voltage adjustable speed drive sets a new standard in industrial drive technology with its innovative multi-level Pulse Width Modulation (PWM) and Neutral-Point Clamping (NPC). This drive offers a compact design, reduced component count, and exceptional safety features. It excels in efficiency, featuring Three Cables In, Three Cables Out setup, IEEE-519 2014 compliant 24-Pulse Harmonic Cancellation, and a High True Power Factor (>0.96). The drive's robust Medium Voltage IGBT Technology, Compact Power Modules, standard Copper-Wound Isolation Transformer, and Air-Cooling System ensure reliability. It provides versatile digital and analog I/Os and adheres to rigorous standards, making it a standout choice for industries seeking safety, efficiency, and adaptability. - 103.7" x 222" x 49.5" (HxWxD)

Specifications
Manufacturer	Toshiba
VFD NEMA-IP Rating	UL Type 1
VFD Input Voltage	4160 Volt Three Phase
VFD Output Voltage	4160 Volt Three Phase
VFD Amperage Output	620 Amp
VFD Horsepower Output	5000 HP
