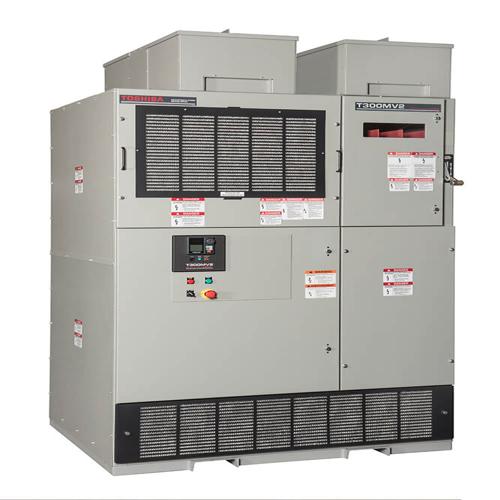

Toshiba M44AN44500AAA0 MV2 Series 5000 HP, 620 Amp, 4160 VAC
Normally In Stock
Code: 339935
Toshiba M44AN44500AAA0 - 3 Phase - 620 Amp - 4160 VAC - Frame: 4 - 5000 HP - UL Type 1 - Input Disconnect, Internal Cooling Fan, Standard Reactor, Standard Cooling. *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Usually ships Same Day or Next Day$933584.40
Sale Price
$777987.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Toshiba M44AN44500AAA0 - The T300MV2® medium voltage adjustable speed drive sets a new standard in industrial drive technology with its innovative multi-level Pulse Width Modulation (PWM) and Neutral-Point Clamping (NPC). This drive offers a compact design, reduced component count, and exceptional safety features. It excels in efficiency, featuring Three Cables In, Three Cables Out setup, IEEE-519 2014 compliant 24-Pulse Harmonic Cancellation, and a High True Power Factor (>0.96). The drive's robust Medium Voltage IGBT Technology, Compact Power Modules, standard Copper-Wound Isolation Transformer, and Air-Cooling System ensure reliability. It provides versatile digital and analog I/Os and adheres to rigorous standards, making it a standout choice for industries seeking safety, efficiency, and adaptability. - 103.7" x 222" x 49.5" (HxWxD)
Specifications
Manufacturer
Toshiba
VFD NEMA-IP Rating
UL Type 1
VFD Input Voltage
4160 Volt Three Phase
VFD Output Voltage
4160 Volt Three Phase
VFD Amperage Output
620 Amp
VFD Horsepower Output
5000 HP
Features
Overload Rating, 115% for 60 Seconds (Some Ratings with 110% Overload)
NEMA 1 Ventilated Enclosure with Gasket & Air Intake Filters with IP20 Degree of Protection
Ten Digital Inputs: Interposing Relay may be Required
Ten Digital Outputs: Interposing Relay may be Required
Three Analog Inputs: Isolation Transducer Required
Eight Analog Outputs: Isolation Transducer Required
Medium Voltage IGBT Technology
EOI: Plain-English LCD Display
Ambient Temperature: 32° to 104° F (0° to 40°C)
Altitude: Up to 1000 Meters without De-rate
Humidity: 95% Non-Condensing
Motor Cable Length 1000 ft. Without Additional Filter
Standards & Compliances: NEC, NEMA, UL Listed in US & Canada, ANSI
