Code: 339842

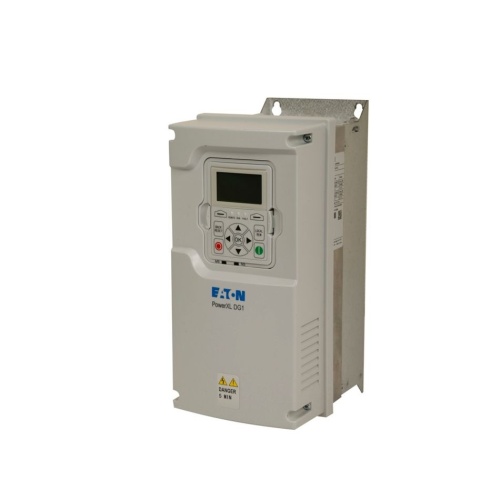

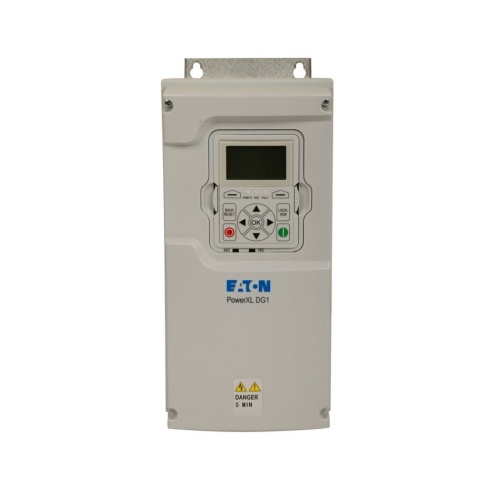

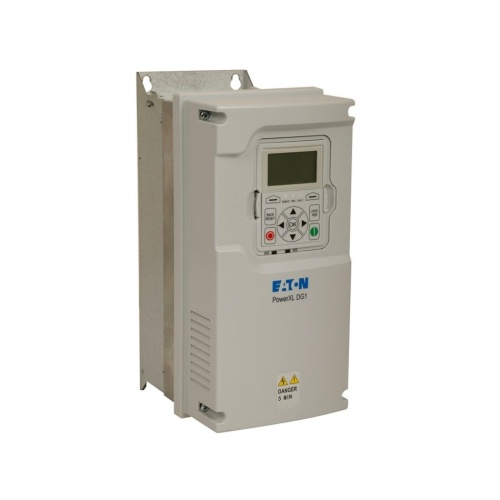

Eaton DG1-347D6FB-C21C DG1 Series CT VFD - 5 HP, 7.6 Amp
Normally In Stock
Eaton DG1-347D6FB-C21C - Input: 400V 3 Phase - Output: 500V 3 Phase - 5 HP - 7.6 Amp - FR2 Frame - LCD Graphical Display - With Brake - EMC filter, DC choke - EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU - IP21, NEMA 2
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1822.15
Sale Price
$1518.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton DG1-347D6FB-C21C - Eaton's PowerXL DG1 Series Drives are advanced additions to the PowerXL Series, designed for demanding commercial and industrial applications. Utilizing sophisticated semiconductor technology and modular construction, these drives offer adaptability to customer requirements. They feature standard communication protocols, I/O, and Eaton's Active Energy Control for enhanced efficiency and safety. With dual overload ratings, variable torque options, diverse enclosures, integrated DC link choke, and user-friendly interface, the drives provide versatile hardware. Seamless communication integration, quick disconnect terminals, and software features like energy-efficient motor control and dynamic energy management ensure these drives deliver robust performance and cutting-edge technology - 13" x 9.5" x 17.5" (HxWxD)
Specifications
VFD Torque
Constant Torque
VFD Horsepower Output
5 HP
VFD Amperage Output
7.6 Amp
VFD NEMA-IP Rating
NEMA 1
VFD Output Voltage
500 Volt Three Phase
VFD NEMA-IP Rating
IP21
VFD Input Voltage
400 Volt Three Phase
Manufacturer
Eaton
VFD Frame Type
FR2
VFD EMC Filter
With
VFD Line
DG1
VFD Brake
With Brake Chopper
Communication
Ethernet/IP
Communication
Modbus TCP
Communication
RS-485: Modbus RTU
Communication
Bacnet MS/TP
Features
Ease of use: Easy Startup Wizard, PC Tool software, four built-in applications, diagnostics, local/remote button, removable keypad with copy/paste functionality
Space-savings: Compact size, open Type 12 option, on-board communication and I/O
Energy optimization: Active energy control algorithm, 5% DC choke, input surge protection, EMI/RFI filter built-in
Reliability: High overload (CT) and low overload (VT) rated, conformal coated boards, brake chopper circuit, durable metal power section, 50°C rating (60°C de-rating), removable keypad rated IP54
Certifications: UL, CE, cUL, RoHS, C-Tick
