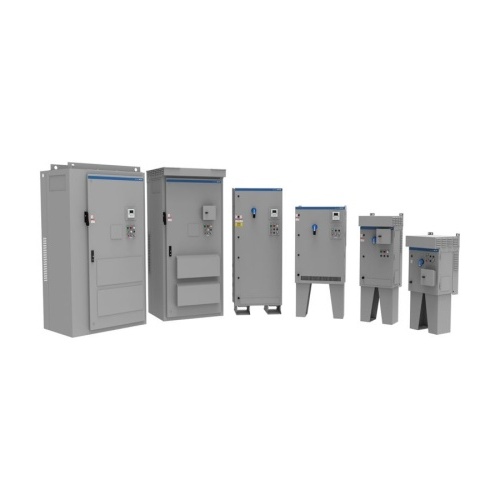

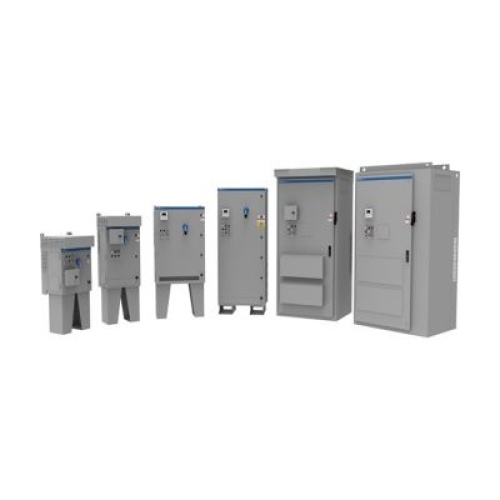

Eaton EHB1255A3KS0G2A000 - The PowerXL DH1 Series Enclosed Drives integrate cutting-edge Eaton technology into pre-engineered solutions tailored for common HVAC/R applications. Leveraging PowerXL DH1 advantages, these enclosures prioritize enhanced user safety through short circuit current ratings of up to 100 kAIC, coupled with industry-leading energy efficiency from the patented Active Energy Control® algorithm. These enclosures feature VT ratings aligned with HVAC/R standards, offering input power protection options including circuit breakers, motor circuit protectors, fused disconnects, and isolation fusing. Standard configurations include 2 and 3 contactor bypass setups, alongside a multi-color LED pilot device simplifying drive state representation. The compact disconnect enclosure facilitates straightforward 100 kAIC disconnect platforms for basic HVAC/R applications, complemented by NEMA 12 and 3R designs for optimized product footprint. Onboard HVAC/R communications ensure easy connectivity to building management systems, and plenum rating and DC link choke contribute to significant input harmonics reduction. The PowerXL DH1 includes BACnet/IP, Modbus TCP, Modbus RTU, and BACnet MS/TP communication protocols, with various enclosure ratings and mounting options for versatile installation. The product range spans 208V (1-100 hp), 230V (1-125 hp), and 480V (1.5-250 hp) - 26.2" x 90.1" x 31.3" (HxWxD)
