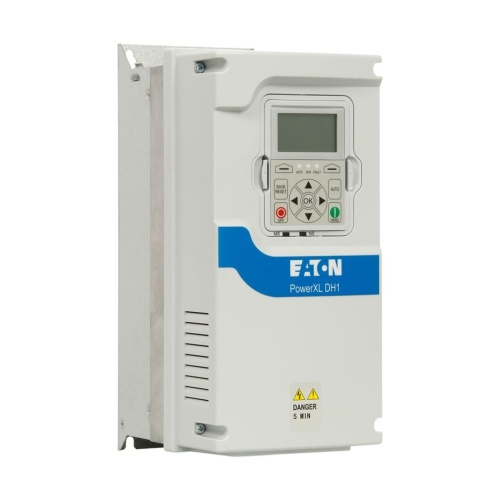

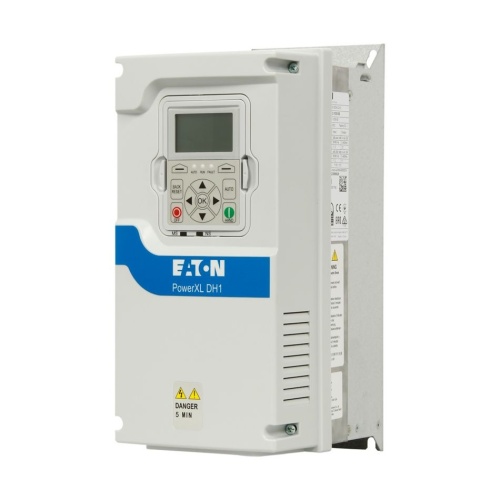

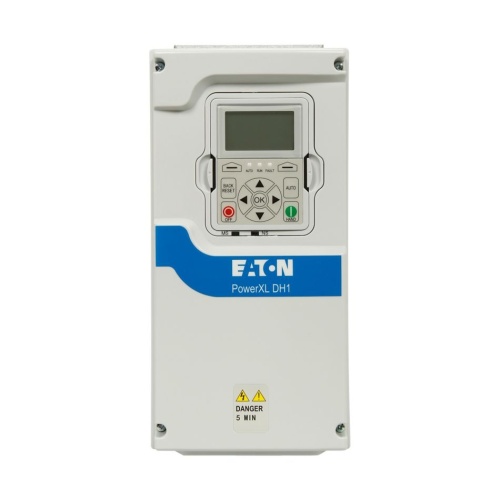

Eaton DH1-32012FN-C54C DH1 Series VT VFD - 4 HP, 2.5 Amp
Normally In Stock
Code: 338020
Eaton DH1-32012FN-C54C - Input: 230V 3 Phase - Output: 240V 3 Phase - 4 HP - 2.5 Amp - FR1 Frame - Keypad Display - IP54, NEMA 13
Condition: New
Usually ships Same Day or Next Day$2900.51
Sale Price
$2417.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton DH1-32012FN-C54C - Eaton's PowerXL DH1 Series Drives, a key part of the PowerXL lineup, are meticulously designed for the demanding HVAC/R market. With advanced semiconductor technology and modular construction, these drives adapt to customer needs. Incorporating standard HVAC/R communication protocols and I/O, along with Eaton's Active Energy Control for efficiency, DH1 drives offer integrated common mode reduction, variable torque, diverse enclosures, real-time clock, and user-friendly interface. AUTO operation, standard I/O, and BACnet/IP, Modbus TCP, and Modbus RTU communications enhance functionality. Alongside expansion slots, quick disconnect terminals, and software features like energy savings calculation, quick start wizard, and dynamic motor regenerative energy management, DH1 drives provide superior performance with energy efficiency - 7.91" x 6.02" x 12.87" (HxWxD)
Specifications
VFD Torque
Variable Torque
VFD Horsepower Output
4 HP
VFD Amperage Output
2.5 Amp
VFD Output Voltage
240 Volt Three Phase
VFD Input Voltage
230 Volt Three Phase
VFD NEMA-IP Rating
NEMA 12
VFD NEMA-IP Rating
IP54
Manufacturer
Eaton
VFD Frame Type
FR1
VFD Control Panel
LED
VFD Line
DH1
VFD EMC Filter
With
Communication
Modbus TCP
Communication
Bacnet MS/TP
Communication
Bacnet/IP
Communication
Modbus RTU
Features
Energy optimization: Active energy control algorithm, 5% DC choke, input surge protection, EMI/RFI filter built-in
HVAC communications built-in: BACnet/IP, BACnet MS/TP, Modbus RTU, Modbus/TCP
Easy to use: Startup Wizard, PC Tool software, three built-in applications, diagnostics, auto button, removable keypad with copy/paste functionality
Space savings: Compact size, open Type 12 option, on-board communication and I/O
On-board I/O: Includes built-in, on-board I/O to help eliminate the need for costly option cards, and to work seamlessly right out of the box
Reliability: Low overload (VT) rated, conformal coated boards, durable metal power section, 50°C rating (60°C de-rating), removable keypad rated IP54. Standard NEMA 1/12/3R enclosed offering up to 250hp
Certifications: UL®, CE, cUL®, RoHS, C-Tick
