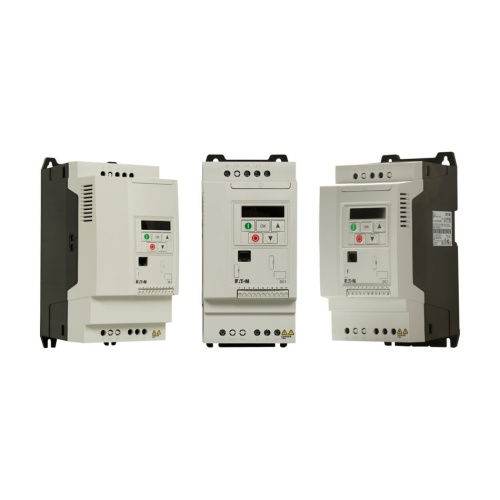

Eaton DC1-12015NB-A20CE1 DC1 Series VFD - 5 HP, 15 Amp
Normally In Stock
Code: 337863
Eaton DC1-12015NB-A20CE1 - Input: 240V 1 Phase - Output: 230V 3 Phase - 5 HP - 15 Amp - FR3 Frame - LED Display - IP20, NEMA 1
Condition: New
Usually ships Same Day or Next Day$1042.88
Sale Price
$869.07
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton DC1-12015NB-A20CE1 - Introducing Eaton's PowerXL® DC1 variable frequency drives, the cutting-edge solution tailored for contemporary machinery applications. With a streamlined design encompassing only 14 essential parameters, SmartWire-DT and EtherNet/IP connectivity, and effortless installation, the DC1 sets a new standard. Boasting sensorless vector control and compatibility with permanent magnet motors, this latest iteration enhances performance. Its single-phase motor support, detachable terminal blocks, and versatile features facilitate swift commissioning, particularly advantageous for panel builders. With a robust construction, industry-leading efficiency, integrated EMC filters, and advanced communication modules, the DC1 drive is poised to revolutionize energy-efficient automation - 9.75" x 6.25" x 12.75" (HxWxD)
Specifications
VFD Filter Voltage
480 Volt
VFD Filter Enclosure
NEMA 1
VFD Horsepower Output
5 HP
VFD Amperage Output
15 Amp
VFD Input Voltage
240 Volt Single Phase
VFD Output Voltage
230 Volt Three Phase
VFD NEMA-IP Rating
IP20
Manufacturer
Eaton
VFD Frame Type
FR3
VFD Control Panel
Keypad
VFD NEMA-IP Rating
NEMA 0
VFD Line
DC1
VFD Filter Watts Loss
1300 Watts
Features
Fast commissioning with 14 basic parameters
High overload capability: 150 % for 60 sec., 175 % for 2 sec
Ambient air temperature of 50°C without derating (IP20)
Plug-in modules can be used to expand the number of relay I/Os
Integrated CANopen and Modbus RTU
Protection types: IP20 and IP66
EMC filter, optional
Braking transistor, optional
Integrated PI controller
V/F control with voltage boost
International standards (CE, UL, cUL, c-Tick, RoHS, Gost-R, UkrSEPRO)
