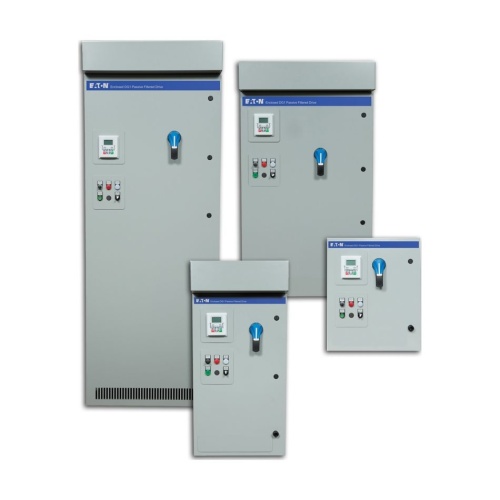

Eaton EGS0114B320000000R EGS Series CT, VT VFD - 7.5 HP, 11 Amp
Normally In Stock
Code: 337853
Eaton EGS0114B320000000R - Input: 480V 3 Phase - Output: 480V 3 Phase - 7.5 HP - 11 Amp - FR2 Frame - LED Display - NEMA 3R
Condition: New
Usually ships Same Day or Next Day$9814.48
Sale Price
$8178.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton EGS0114B320000000R - The PowerXL EGS Series Enclosed Drives merge cutting-edge Eaton technology into pre-engineered solutions for a wide range of applications. Leveraging PowerXL EGS benefits, these enclosures prioritize user safety with the Safe Torque feature and industry-leading energy efficiency via the patented Active Energy Control algorithm. Eaton introduces the Rapid Response System, offering industry-best lead times by providing customers with 9 million pre-engineered configurations, each with a set lead time. This system streamlines the quotation and delivery process. The drives offer dual ratings for constant torque/high overload and variable torque/low overload applications, optional external brake chopper, input/output reactors for harmonics reduction, bypass options, customizable cover control, and communication protocols like EtherNet/IP, Modbus TCP, Modbus RTU, and BACnet MS/TP. Additional options include PROFIBUS-DP and CANopen communication protocols, various enclosure ratings (NEMA Type 1, 12, 3R), and mounting choices for versatile installation - 34" x 21" x 21" (HxWxD)
Specifications
VFD Torque
Variable Torque
VFD Torque
Constant Torque
VFD Amperage Output
11 Amp
VFD Horsepower Output
7.5 HP
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
Manufacturer
Eaton
VFD NEMA-IP Rating
NEMA 3R
VFD Frame Type
FR2
VFD Control Panel
Keypad
VFD Line
DG1 - Enclosed
Features
Dual rated for both constant torque (CT) / high overload (IH) and variable torque (VT) / low overload (IL) applications
Optional brake chopper for external braking applications
Available circuit breaker, motor circuit protector, fused disconnect, isolation fusing and surge protective device (SPD) options to provide input power protection
Optional 3% input and output reactors provide a reduction in voltage and current harmonics on both line and load side
Bypass options include a standard three-contactor design and a reduced-voltage soft starter design
Output contactor option provides a means for positive disconnection of the drive output from the motor terminals
MotoRX and dV/dt filter options are used to reduce transient voltages at the motor terminals
Customizable cover control options
Padlockable disconnect
The PowerXL DG1 comes standard with the following communication protocols: 1. EtherNet/IP 2. Modbus/TCP 3. Modbus RTU 4.BACnet MS/TP
