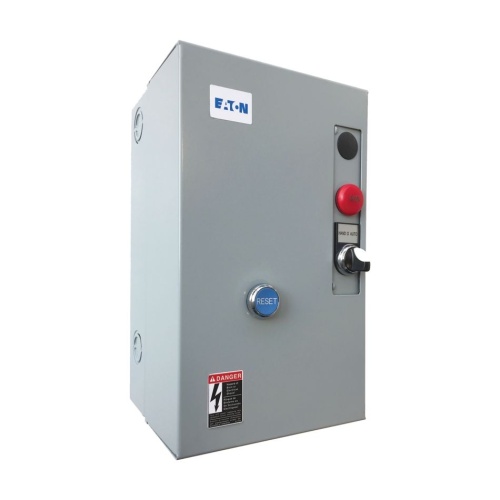

Eaton ECX09K1AAA-Q Non-Reversing Starter, 50 Amp, 120 Volt Coil
Normally In Stock
Code: 337504
Eaton ECX09K1AAA-Q - Three Phase - 60 Hz - 50 Amp - 120 Volt Coil - NEMA 1 Enclosure - Size: 1 - XT Series
Condition: New
Usually ships Same Day or Next Day$1798.51
Sale Price
$1498.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton ECX09K1AAA-Q - 120 V, NEMA 1, Non-combination, non-reversing starter, 50 A, 40-57 A, Three-phase
Specifications
Starter Coil Voltage
120 VAC
Starter NEMA Size
1
Starter Frequency
60 Hz
Starter Enclosure Type
NEMA 1
Starter Reversing Capability
Non-Reversing
Starter Amperage
50 Amp
Manufacturer
Eaton
Component
IEC Non-Reversing Starter
Starter Class
XT
Starter Phase
Three Phase
Features
AC control from 12 V to
600 V 50/60 Hz
DC control from 24 V to
220 V
Available with screw or
spring cage terminals
Reversing or non-reversing
contactors and starters
AC-3 contactor ratings to
1000 A and AC-1 contactor
ratings to 2000 A
Non-reversing starters to
650 A
Panel or DIN rail mounting
to 65 A
IP20 finger and back-ofhand proof
Large ambient temperature
AC and DC controlled
contactors in the same
compact frame
Low power consumption
DC coils
Built-in NO or NC auxiliary
contacts to 32 A
Plug-in accessories for
reduced installation time
Types 1 (IP23), 4 (IP66), 4X
(IP66), 12 (IP65) and 3R
(IP32)
Circuit breakers, fused,
non-fused and noncombination designs
available
Opaque (standard) or clear
covers available on nonmetallic Halyester
enclosure option
