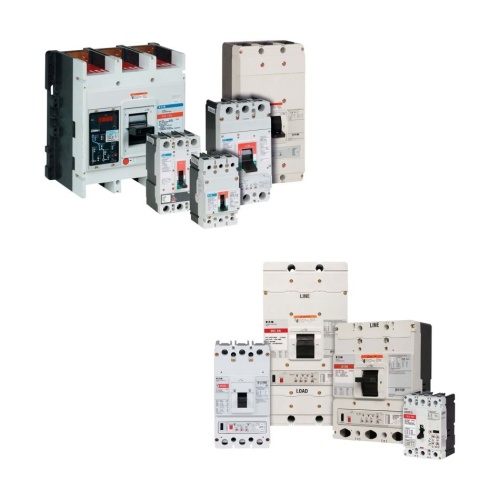

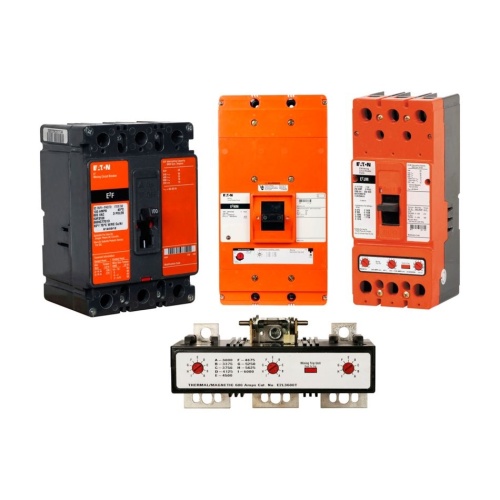

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Eaton E2LEM3600MWA05 Mining Molded Case Circuit Breaker, E2 Series, 577 Max Volt, 600 Amp, Three Pole
Normally In Stock
Code: 324555
Eaton E2LEM3600MWA05 - L Frame - E2 Type - Mining Class - E2 Series - 577 VAC - 600 Amp - Three Pole
Condition: New
CALL FOR LEAD TIME$40952.27
Sale Price
$34126.89
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E2LEM3600MWA05 - L-frame, E2LEM, Complete breaker, Electronic LI trip, 500-2500A trip rating, Three-pole, 600A, 1000Y/577 Vac, 250 Vdc, Without terminals, Mining, 1A-1B same side with right pigtail
Specifications
Poles (Molded Case Breaker)
Three Pole
Frame Type (Molded Case Breaker)
L Frame
Amperage (Molded Case Breaker)
600 Amp
Interrupt Rating (Molded Case Breaker)
65 Ka 240 Volt
Interrupt Rating (Molded Case Breaker)
35 Ka 480 Volt
Interrupt Rating (Molded Case Breaker)
25 Ka 600 Volt
Manufacturer
Eaton
UL Listing (Molded Case Breaker)
UL Listed
Component
Mining Molded Case Circuit Breaker
Maximum Voltage (Molded Case Breaker)
577 VAC
Interrupt Rating (Molded Case Breaker)
10 Ka 577 Volt
Interrupt Rating (Molded Case Breaker)
22 Ka 250 Volt
Features
Extensive field testing in harsh environments as well as tough design ensure highest quality and dependability.
Protects all sizes of trailing cable defined by MSHA with just two frames and three trip units, minimizing panel design time and reducing inventory requirements.
Most trip units and accessories can be field installed, providing on-site customization capabilities and easy replacement.
Built-in test port makes it convenient to field test electronic breakers using an optional hand-held test kit.
Eaton Authorized Breaker Service options extend the life of your breakers with cleaning, testing, calibrating, handle or cover replacement, and more, bringing your circuit breakers to factory restored standard.
