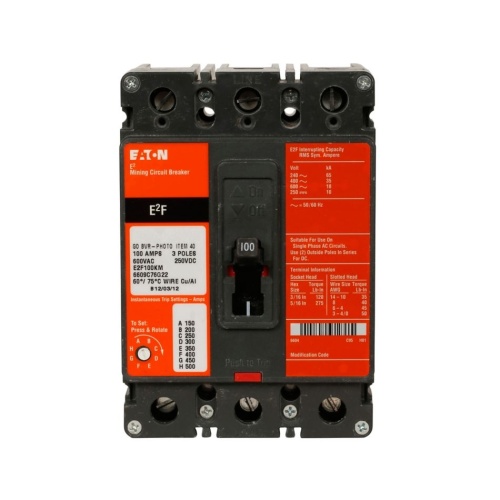

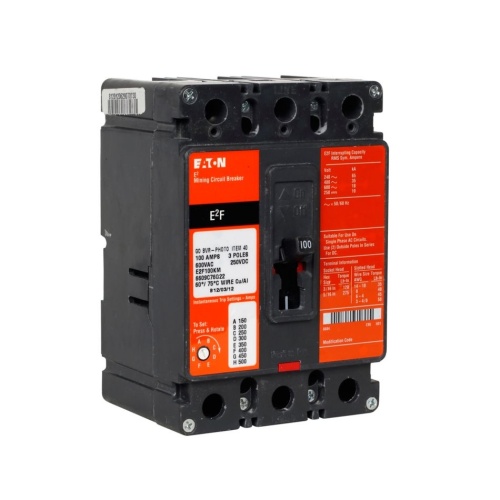

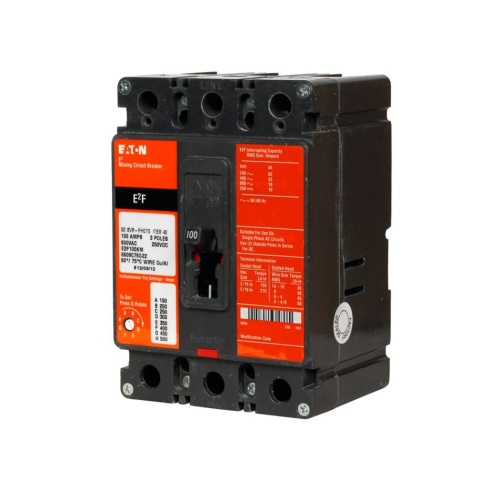

Eaton E2F100KMA02S22 Mining Molded Case Circuit Breaker, E2 Series, 600 Max Volt, 100 Amp, Three Pole
Normally In Stock
Code: 324138
Eaton E2F100KMA02S22 - F Frame - E2 Type - Mining Class - E2 Series - 600 VAC - 100 Amp - Three Pole
Condition: New
CALL FOR LEAD TIME$3871.21
Sale Price
$3226.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E2F100KMA02S22 - F-frame, E2F, Non-interchangeable magnetic only trip, 150-500A, Three-pole, 100A, 600 Vac, 250 Vdc, 48-127 Vac or 48-60 Vdc rear w/right pigtail shunt trip, 1A-1B rear w/left pigtail aux
Specifications
Amperage (Molded Case Breaker)
100 Amp
Poles (Molded Case Breaker)
Three Pole
Maximum Voltage (Molded Case Breaker)
600 VAC
Interrupt Rating (Molded Case Breaker)
65 Ka 240 Volt
Interrupt Rating (Molded Case Breaker)
18 Ka 600 Volt
Interrupt Rating (Molded Case Breaker)
10 Ka 250 Volt
Manufacturer
Eaton
Frame Type (Molded Case Breaker)
F Frame
Interrupt Rating (Molded Case Breaker)
25 Ka 480 Volt
UL Listing (Molded Case Breaker)
UL Listed
Component
Mining Molded Case Circuit Breaker
Features
Extensive field testing in harsh environments as well as tough design ensure highest quality and dependability.
Protects all sizes of trailing cable defined by MSHA with just two frames and three trip units, minimizing panel design time and reducing inventory requirements.
Most trip units and accessories can be field installed, providing on-site customization capabilities and easy replacement.
Built-in test port makes it convenient to field test electronic breakers using an optional hand-held test kit.
Eaton Authorized Breaker Service options extend the life of your breakers with cleaning, testing, calibrating, handle or cover replacement, and more, bringing your circuit breakers to factory restored standard.
