Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 31671

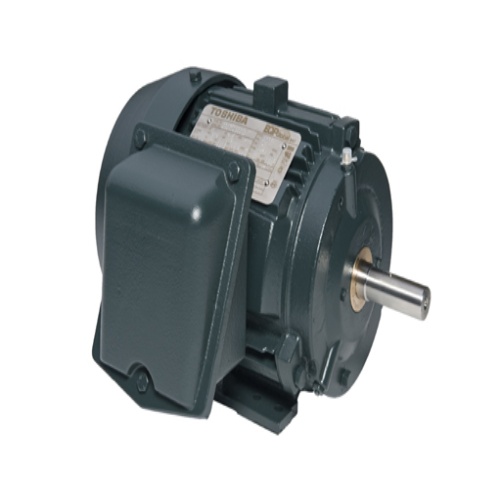

Toshiba B3004FLF4BSHJL IEEE 841 Premium Motor 300 HP 460 Volt 3 Phase
Normally In Stock
Toshiba B3004FLF4BSHJL IEEE 841 Premium Motor 300 HP 460 Volt 3 Phase Totally Enclosed Fan Cooled 1800 RPM 330 Amp Continuous Duty Cast Iron with Class F Insulation.
Condition: New
Usually ships Same Day or Next Day$40833.19
Sale Price
$34027.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Toshiba B3004FLF4BSHJL - 60 Hz - Nema Design B - Motor Frame Model: N449T
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Frame Model
N449T
Motor Horsepower
300 HP
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Manufacturer
Toshiba Motors
Motor Amperage (Full Load)
330 Amp
Motor Frame Construction
Cast Iron
Features
Toshiba’s general purpose, totally enclosed fan cooled, NEMA Premium® efficiency, EQPIII-841 motor series addresses the special requirements of the petrochemical industry where motor performance and reliability are imperative.
This product line was built using the cornerstone of the Toshiba motor product offering as a base, and it is designed for indoor and outdoor use in the harshest environments where premium performance and reliability are a must.
Its performance offers 20 to 1 constant torque, oversized bearings, IP56 protection, Class F insulation system and NEMA Premium® design, meeting the NEMA energy efficiency requirements as listed in NEMA MG1 Table 12-12. These motors are built to meet or exceed IEEE standard 841 specifications and feature a labyrinth seal on both DE and ODE.
