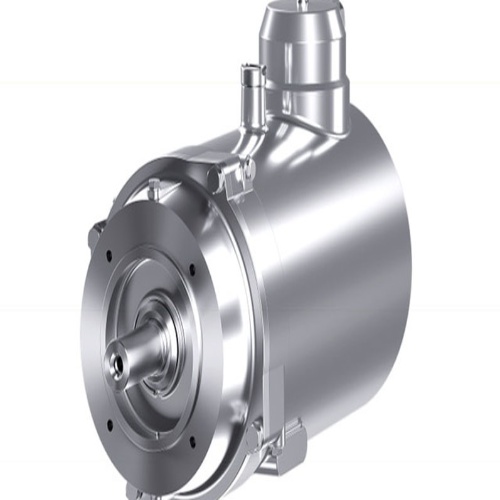

Baldor SSEWDM09222-B - 3 HP, 3 Phase, TENV

Baldor SSEWDM09222-B - Baldor-Reliance® Washdown duty motors are purpose-built to meet the rigorous demands of applications that require enhanced protection against contaminants and the ability to function in environments exposed to washdown methods. ABB offers the most extensive range of washdown motors, ranging from painted to stainless steel options, catering to the specific washdown needs of their diverse customer base. Key features of these motors include double sealed motor bearings, neoprene rubber gaskets ensuring a tight, waterproof seal, a 300 series stainless steel shaft, hardware, and nameplate, shaft seals on both ends, sealed frame to endplate joints to prevent water entry, and easily removable drain plugs enabling thorough drainage in any position. These features collectively make the Baldor-Reliance® Washdown duty motors highly reliable and suitable for the most demanding washdown applications.

Specifications
Motor Voltage Phases	3 Phase
Motor Horsepower	3 HP
Motor Enclosure Type	Totally Enclosed Non-Vented
Motor Voltage	400 Volt
Motor RPM's	3000 RPM
Manufacturer	Baldor-Reliance
Motor Construction	Stainless Steel
