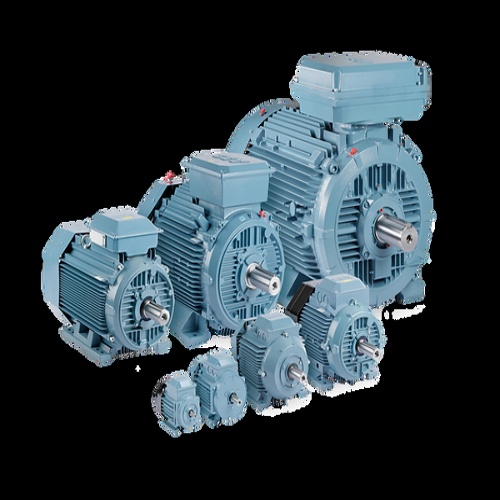

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Baldor 3GKP182420-ADKUS04 - TEFC, 3 Phase, 22 kW
Normally In Stock
Code: 315276
Baldor 3GKP182420-ADKUS04 - Totally Enclosed Fan Cooled - 1500 RPM - 460 Volt - 22 kW - Cast Iron - Class F Insulation
Condition: New
CALL FOR LEAD TIME$12538.70
Sale Price
$10448.92
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor 3GKP182420-ADKUS04 - Introducing IEC Zone 1 Flameproof three-phase motors, designed for export only. ATEX/IECEx certified: Ex db eb IIC T4 Gb. Power range: 0.55 to 90 kW. Features include IM B3 foot-mounted design, IE3 efficiency, EU MEPS compliance, cast iron construction, inverter-ready*, and PTC thermistors. Ideal for pumps, compressors, fans, and conveyors in hazardous environments.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Voltage
460 Volt
Motor RPM's
1500 RPM
Manufacturer
Baldor-Reliance
Motor Construction
Cast Iron
Motor Horsepower
22 KW
Features
IM B3 (1001), foot mounted
IE3 efficiency per IEC 60034-30-1 (2014)
Complies with EU MEPS/EcoDesign Regulation (EU) 2019/1781 effective July 2021. CE marked.
Cast iron frame and endplates are standard
Inverter ready*
6 post terminal block in large F3 terminal box provides easier, lower cost installation
Class F insulation with Class B temperature limits
Painting system C3M acc. to ISO 12944-5
IC411/TEFC
(3) PTC thermistors, 150 °C standard
