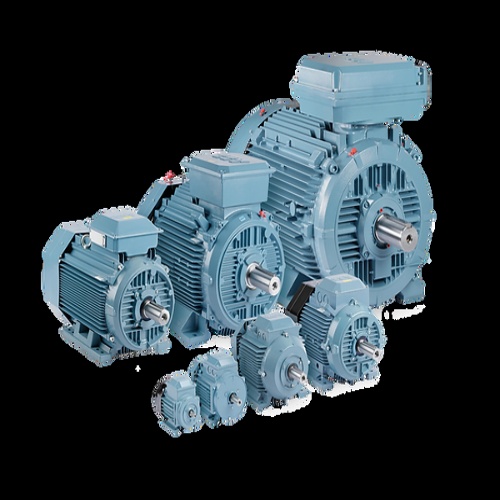

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Baldor 3GGP282220-ADKUS03 - TEFC, 3 Phase, 75 kW
Normally In Stock
Code: 315257
Baldor 3GGP282220-ADKUS03 - Totally Enclosed Fan Cooled - 1500 RPM - 460 Volt - 75 kW - Cast Iron - Class F Insulation
Condition: New
CALL FOR LEAD TIME$24853.80
Sale Price
$20711.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor 3GGP282220-ADKUS03 - Introducing IEC Zone 2 & 22 and Div 2 Increased Safety three-phase motors, designed for hazardous environments. ATEX/IECEx certified: Ex ec IIC T3 Gc, Ex tc IIIC T125C Dc; UL certified: Class I, Div 2 Group A, B, C & D, T3, Class II, Div 2 Group F & G, T4. Power range: 0.37 to 90 kW. Features include IM B3 foot-mounted design, IE3 efficiency, EU MEPS compliance, cast iron construction, inverter-ready*, and PTC thermistors. Ideal for pumps, compressors, fans, and conveyors.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Voltage
460 Volt
Motor RPM's
1500 RPM
Manufacturer
Baldor-Reliance
Motor Construction
Cast Iron
Motor Horsepower
75 Kw
Features
IM B3 (1001), foot mounted
IE3 efficiency per IEC 60034-30-1 (2014). All motors are compliant with DOE and NRCan
Complies with EU MEPS/EcoDesign Regulation (EU) 2019/1781 effective July 2021. CE marked.
Cast iron frame and endplates are standard
Inverter ready*
6 post terminal block in large F3 terminal box provides easier, lower cost installation
Class F insulation with Class B temperature limits
Painting system C3M acc. to ISO 12944-5
IC411/TEFC
(3) PTC thermistors, 150 °C standard
