Baldor XM32362T - XPFC, 3 Phase, 30 HP , 50/60 Hz
Normally In Stock
Code: 315080

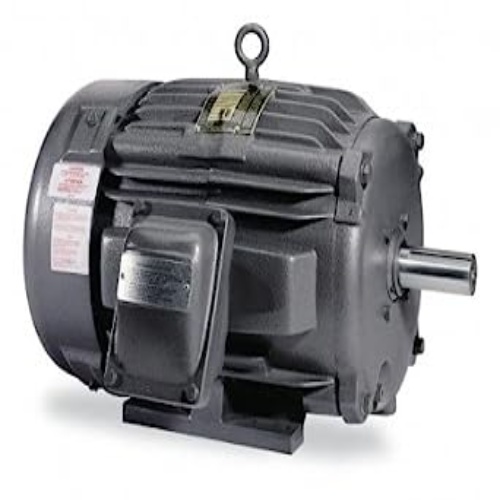

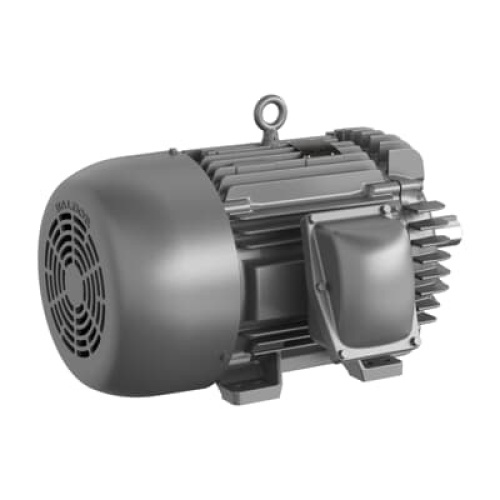

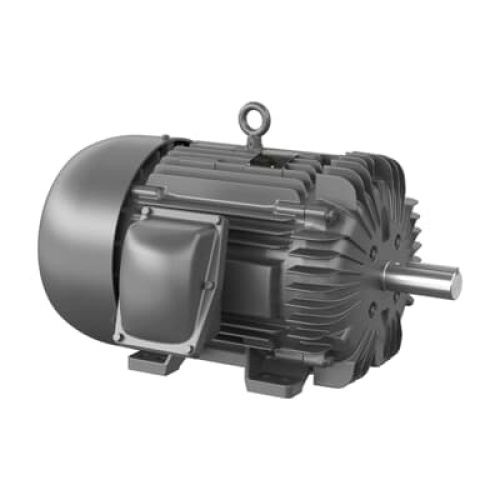

Baldor XM32362T - Explosion- Proof Fan Cooled - 1200 RPM - 460 Volt - 39 Amp - 30 HP - Iron - 326T Frame - Class F Insulation - Continuous Duty
Condition: New
CALL FOR LEAD TIME$14226.01
Sale Price
$11855.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor XM32362T - Baldor-Reliance® explosion-proof motors are designed and certified to operate safely in hazardous locations or potentially dangerous environments where there may be concentrations of combustible gases, vapors, or dust. These motors meet strict safety standards, including UL and CSA certifications for use in Division-based hazardous locations according to the NFPA70 National Electric Code and C22.1, the Canadian Electric Code. Key features of these motors include uncompromised safety, clearly marked UL Certification, and premium efficient electrical designs, ensuring reliable and efficient performance even in challenging and potentially hazardous conditions.
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
30 HP
Motor Frame Model
326T
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor NEMA Design
NEMA Design A
Motor Amperage (Full Load)
39 Amp
Motor Voltage
380 Volt
Motor Frequency
50 Hz
Motor Enclosure Type
Explosion-Proof Fan Cooled
Motor Voltage
190 Volt
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Features
All motors meet or exceed NEMA Premium® efficiency energy requirements for US, Canada and Mexico.
High grade materials make up a strong insulation system with Class F insulation and Class B temperature rise for operation in higher ambient temperature, overload conditions, and voltage tolerances.
Offer a wide variety of enclosure construction from industrial steel band open designs used in relatively clean environments
to totally enclosed cast iron designs where exposure to water, dust, and corrosives exists.
All 3 phase motors are inverter duty per NEMA MG1 Part 31
General Purpose motors are versatile to perform reliably in a variety of operations where highly custom and hazardous location certifications are not needed.
Baldor-Reliance motors are built in US manufacturing facilities and available from our industry leading global distribution network - and are available when and where you need them.
