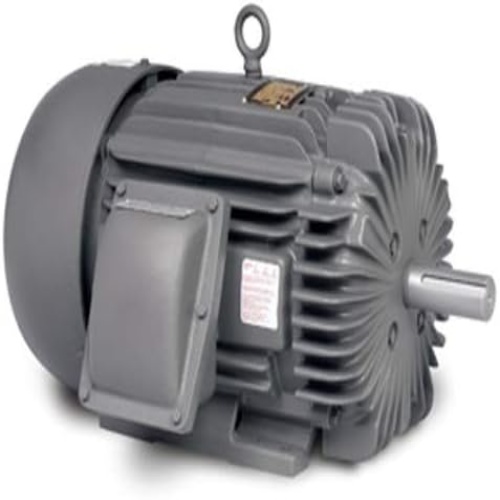

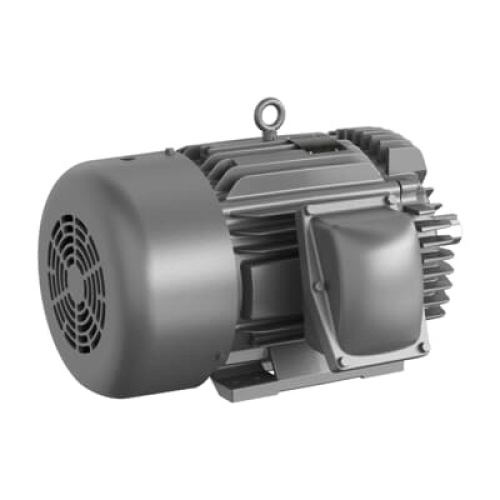

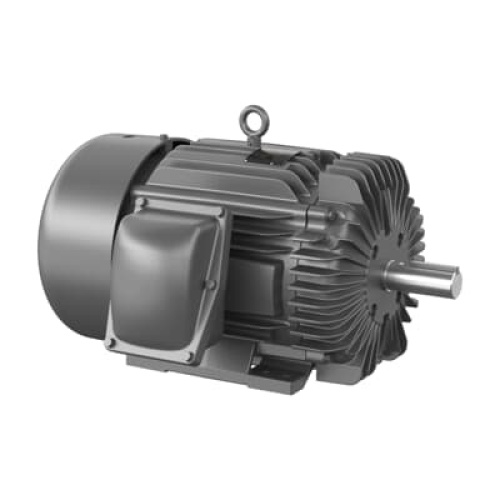

Baldor XM28342T - XPFC, 3 Phase, 30 HP , 50/60 Hz

Baldor XM28342T - Baldor-Reliance® explosion-proof motors are designed and certified to operate safely in hazardous locations or potentially dangerous environments where there may be concentrations of combustible gases, vapors, or dust. These motors meet strict safety standards, including UL and CSA certifications for use in Division-based hazardous locations according to the NFPA70 National Electric Code and C22.1, the Canadian Electric Code. Key features of these motors include uncompromised safety, clearly marked UL Certification, and premium efficient electrical designs, ensuring reliable and efficient performance even in challenging and potentially hazardous conditions.

Specifications
Motor Voltage Phases	3 Phase
Motor Insulation Class	Class F Insulation
Motor Frame Model	286T
Motor Horsepower	30 HP
Motor Frequency	60 Hz
Motor Duty Cycle	Continuous Duty
Motor Voltage	230 Volt
Motor Voltage	460 Volt
Motor RPM's	1800 RPM
Motor NEMA Design	NEMA Design A
Motor Voltage	380 Volt
Motor Frequency	50 Hz
Motor Enclosure Type	Explosion-Proof Fan Cooled
Motor Voltage	190 Volt
Motor Amperage (Full Load)	38 Amp
Manufacturer	Baldor-Reliance
Motor Construction	Iron
