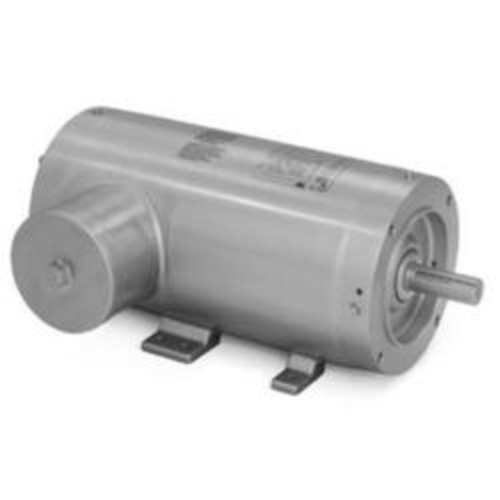

Baldor MM06184-S-AP - , 0.18 KW , 50/60 Hz
Normally In Stock
Code: 314627
Baldor MM06184- S- AP - 1800 RPM - 460 Volt - 0.6 Amp - 0.18 KW - Aluminum - 63 Frame - Class F Insulation - Continuous Duty
Condition: New
CALL FOR LEAD TIME$309.48
Sale Price
$257.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor MM06184-S-AP - Introducing Process Performance IEC aluminum three-phase motors, 0.12-55 kW (0.16-75 Hp), designed for pumps, compressors, fans, conveyors, and general machinery. Durable cast aluminum construction (extruded aluminum in larger frames), cast iron end shield in higher sizes, IE3 efficiency compliant, and inverter-ready. MEPS/EcoDesign Regulation and CE marked. Easy installation with 6 post terminal block. Class F insulation, PTC thermistors (standard on sizes 100-250), and IC411 enclosure (TEFC). Versatile and reliable choice for industrial power needs.
Specifications
Motor Insulation Class
Class F Insulation
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Amperage (Full Load)
0.6 Amp
Motor Frequency
50 Hz
Motor Voltage
400 Volt
Motor Frame Model
63
Manufacturer
Baldor-Reliance
Motor Construction
Aluminum
Motor Horsepower
0.18 Kw
Features
ABB Process Performance (severe duty) IP55 construction. Choice of aluminum (-AP) or cast iron (-PP) frame and endplates.
MM catalog motors have IE2 efficiency
EMM catalog motors have IE3 efficiency per IEC 60034-30
Motors for use in USA are marked with DOE compliance number for use on 460 volt, 60 Hz
6 post terminal block
Class F insulated motors with Class “B” temperature limits
1.0 service factor
all cast iron motors & aluminum 160-250 frames have PTC thermistors (3 in series),150C in stator winding. Inverter ready: frames 63-250, 230-400V, 50 Hz and 460V, 60 Hz, 2:1CT, 20:1VT.
