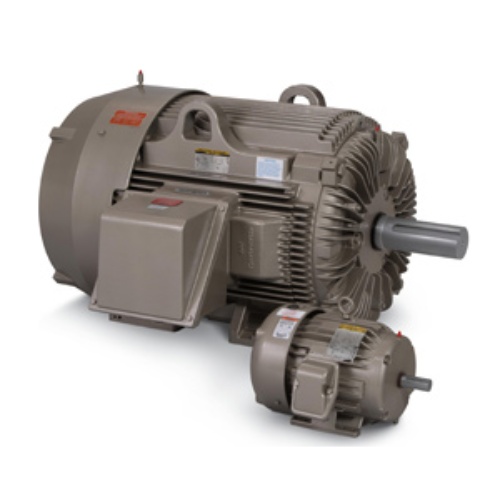

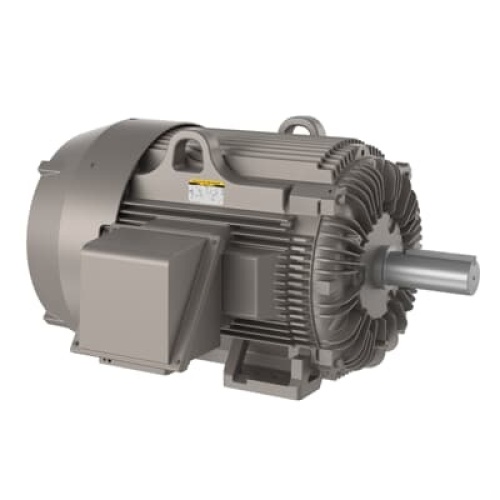

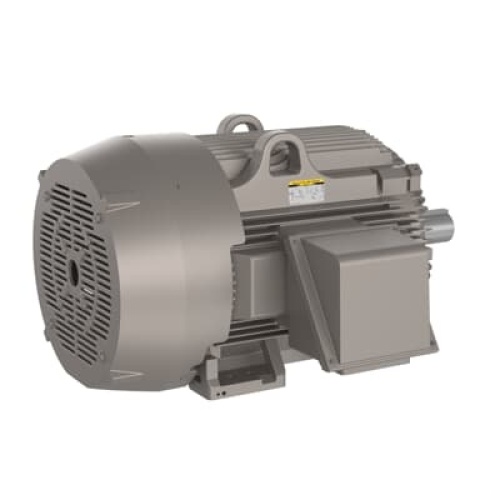

Baldor ECR91008TR-4 - TEFC, 3 Phase, 100 HP , 60 Hz

Baldor ECR91008TR-4 - Baldor-Reliance® severe duty motors are specifically engineered to withstand harsh conditions, safeguarding against contamination, moisture, vibration, and corrosion. These motors are equipped with Super-E® premium efficient electrical designs, ensuring they can handle demanding duty cycles while delivering high starting and peak torques across wide speed ranges. With heavy-duty cast iron construction and enhanced ingress protection, these motors provide a safe, reliable, and long operating life, effectively reducing energy consumption even in the most challenging applications. Additionally, their corrosion-resistant epoxy finish adds further durability to the motors, making them an ideal choice for tough environments.

Specifications
Motor Enclosure Type	Totally Enclosed Fan Cooled
Motor Voltage Phases	3 Phase
Motor Insulation Class	Class F Insulation
Motor Horsepower	100 HP
Motor Frame Model	445T
Motor Frequency	60 Hz
Motor Duty Cycle	Continuous Duty
Motor Voltage	460 Volt
Motor NEMA Design	NEMA Design A
Motor RPM's	900 RPM
Motor Amperage (Full Load)	133 Amp
Manufacturer	Baldor-Reliance
Motor Construction	Iron
