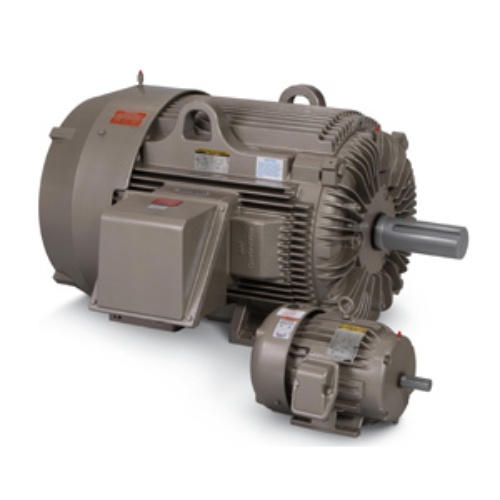

Baldor ECP504008-PP - TEFC, 3 Phase, 400 HP, 60 Hz
Normally In Stock
Code: 313799
Baldor ECP504008- PP - Totally Enclosed Fan Cooled - 900 RPM - 460 Volt - 480 Amp - 400 HP - Cast Iron - 5000 Frame - Class F Insulation - Continuous Duty
Condition: New
CALL FOR LEAD TIME$78311.39
Sale Price
$65259.49
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor ECP504008-PP - Baldor-Reliance® severe duty motors are specifically engineered to withstand harsh conditions, safeguarding against contamination, moisture, vibration, and corrosion. These motors are equipped with Super-E® premium efficient electrical designs, ensuring they can handle demanding duty cycles while delivering high starting and peak torques across wide speed ranges. With heavy-duty cast iron construction and enhanced ingress protection, these motors provide a safe, reliable, and long operating life, effectively reducing energy consumption even in the most challenging applications. Additionally, their corrosion-resistant epoxy finish adds further durability to the motors, making them an ideal choice for tough environments.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
400 HP
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor Voltage
460 Volt
Motor RPM's
900 RPM
Motor Amperage (Full Load)
480 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Cast Iron
Motor Frame Model
5000
Features
250-1000Hp, 460V, 60Hz, 400/690V, 50Hz or 575/600V, 60Hz
Div 2, Class I, Groups A, B, C, D
Div 2, Class II, Groups F & G
Designed in the US to meet specific requirements of industrial processing applications
Industry standard 5008/5010/5012 frame critical mounting dimensions (580 frame designs available upon request)
1.15 service factor (unless otherwise noted)
IE4/IE5 efficiencies DOL and IE5 effiencies with VFD
Inverter duty with insulated NDE bearing to mitigate unwanted bearing currents
Smart Sensor installed at factory
Painting system C4M according to ISO 12944-5
100/120V space heater as standard to prevent condensation (terminated in main conduit box)
Heat-resistant PolyUrea grease
UL/cUL certified
5 year warranty
