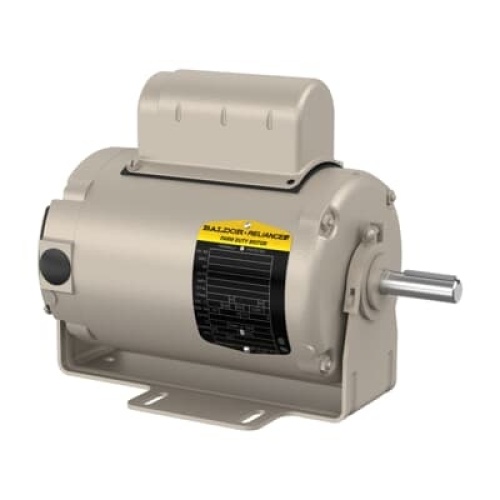

Baldor CHC3504A - TEAO, 1 Phase, 0.5 HP , 60 Hz
Normally In Stock
Code: 313528
Baldor CHC3504A - Totally Enclosed Air Over - 1800 RPM - 230 Volt - 2.6 Amp - 0.5 HP - Steel - 56 Frame - Class B Insulation - Continuous Duty
Condition: New
CALL FOR LEAD TIME$753.08
Sale Price
$627.57
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor CHC3504A - The General Purpose motors offered by Baldor-Reliance® are single phase and three phase industrial motors designed to surpass the energy efficiency standards in the United States, Canada, and Mexico. These motors boast high starting torque, overload capacity, and exceptional reliability. They come in various enclosure constructions, ranging from open designs for moderate water and dust exposure to cast iron designs for harsh environments with water, dust, and corrosive elements. The Super-E® motors offer NEMA Premium efficiency and are ready for use with inverters, featuring wide variable torque speed ranges as a standard feature. Additionally, these motors are backed by a 3-year warranty, ensuring longevity and customer satisfaction. For any special requirements beyond the listed capabilities, customers are advised to consult their sales representative.
Specifications
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor Voltage
230 Volt
Motor RPM's
1800 RPM
Motor Voltage
115 Volt
Motor Voltage Phases
1 Phase
Motor Horsepower
0.5 HP
Motor Amperage (Full Load)
2.6 Amp
Motor Frame Model
56
Motor Insulation Class
Class B Insulation
Motor Enclosure Type
Totally Enclosed Air Over
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
Baldor-Reliance three phase motors are suitable for inverter use per NEMA MG1 Part 31.4.4.2.
*External provisions for bearing current mitigations
Choose rugged cast iron or rolled steel to match your environment—available in TEFC, TEAO, ODP, and resilient mount enclosures for any HVAC need.
Built for long life and reliability, these motors run cooler under load with Class F insulation and a 1.15 service factor, ensuring extra protection in demanding HVAC conditions.
Baldor-Reliance® motors meet or exceed all efficiency requirements for US, Canada and Mexico regulations, regardless of voltage.
