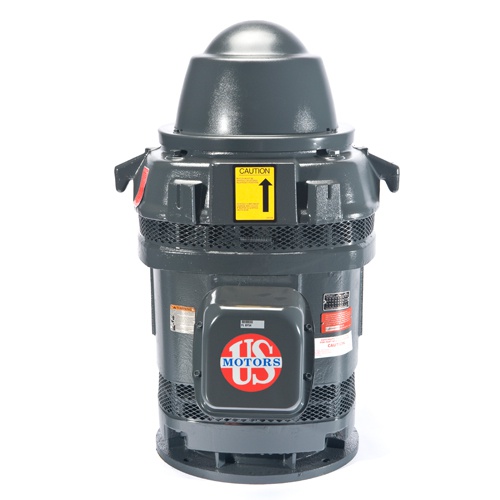

Nidec HO300V2SLH - WP1, 3 Phase, 300 HP
Normally In Stock
Code: 312759
Nidec HO300V2SLH - WP1 - 3 Phase - 300 HP - 1800 RPM - 447TPA Frame - 60 Hz - 460 Max Volt - Class F Insulation
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$53012.98
Sale Price
$44177.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Nidec HO300V2SLH - Introducing the Vertical HOLLOSHAFT® High Thrust Motors, a three-phase, weather protected type I (WPI), premium efficient motor designed for use on turbine, mix flow, and propeller pumps. These motors are built to deliver exceptional performance and reliability in demanding applications. Featuring Class F insulation, Class B temperature rise at full load, and a 1.15 service factor, they ensure safe and efficient operation. With a maximum ambient temperature of 40°C and altitude capability up to 3,300 feet, they are suitable for various environments. The motors offer a premium efficient design, special balance, corrosion-resistant mill & chemical duty paint, and a 115-volt space heater for optimal performance and longevity. They also feature Non-Reverse Ratchet (NRR) and Self-Release Coupling (SRC) options.
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
300 HP
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Enclosure Type
WP1
Manufacturer
Nidec
Motor Frame Model
447TPA
Features
Class F Insulation, Class B Rise at Full Load (Sine Wave Power)
1.15 Service Factor (Sine Wave Power)
Maximum 40°C Ambient, 3,300 Feet Altitude
230/460 Volt Motors Suitable for 230 Volt Part Winding Start
30 HP & Below Can Be Rerated for 208/415 Volt, 50 Hertz Operation at 1.0 Service Factor (230/460 Volt Ratings Only)
Premium Efficient Design
Special Balance
115 Volt Space Heater (through 250 HP)
Normally Closed Thermostats (1 per Phase)
Corrosion Resistant Mill & Chemical Duty Paint
Inverter Duty per NEMA®† MG-1 Part 31 at 1.0 Service Factor
Shaft Grounding Ring
Upper Insulated Bearing 400 Frame & Up
NRR = Non-Reverse Ratchet, SRC = Self-Release Coupling
A member of the ACCU-SERIES® family of variable speed products
Discount Symbol: DS-7VS
