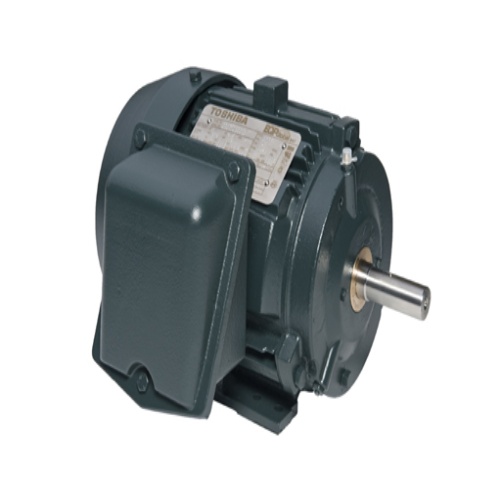

Toshiba 3/46XDSB41A-P IEEE 841 Premium Motor 0.75 HP 460 Volt 3 Phase
Normally In Stock
Code: 31270
Toshiba 3/46XDSB41A-P IEEE 841 Premium Motor 0.75 HP 460 Volt 3 Phase Totally Enclosed Fan Cooled 1200 RPM 1.4 Amp Continuous Duty Cast Iron with Class F Insulation.
Condition: New
Usually ships Same Day or Next Day$770.74
Sale Price
$642.28
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Toshiba 3-46XDSB41A-P - 60 Hz - Nema Design B - Motor Frame Model: 143T
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
0.75 HP
Motor Frame Model
143T
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor Voltage
460 Volt
Manufacturer
Toshiba Motors
Motor Amperage (Full Load)
1.4 Amp
Motor Frame Construction
Cast Iron
Features
The Toshiba EQP Global® 841 motor series is designed to meet and exceed the requirements of the petrochemical industry’s 841 specifications.
With a totally enclosed fan cooled (TEFC) design, its robust construction extends operating life and minimizes maintenance and downtime.
The EQP Global 841 series includes enhanced features such as labyrinth seals on both ends, providing an IP56 rating that protects against moisture and contaminants entering the enclosure. With a complete heavy-duty cast-iron construction, these motors are well-suited for severe environments.
Manufactured with a commitment to quality, the EQP Global 841 series delivers exceptional performance and reliability in demanding applications.
The EQP Global 841 specifically addresses the needs of the petrochemical industry, where premium performance and reliability are imperative. Building on over 20 years of success with our EQPIII motor series, the EQP Global 841 features design enhancements on the rotor, frame, brackets, fan, and bearings.
This cutting-edge motor product line is designed to meet or exceed the competitive demands of the global market, as well as the requirements of the Energy Independence & Security Act of 2007 (EISA), while maintaining the high reliability and quality expected from Toshiba.
