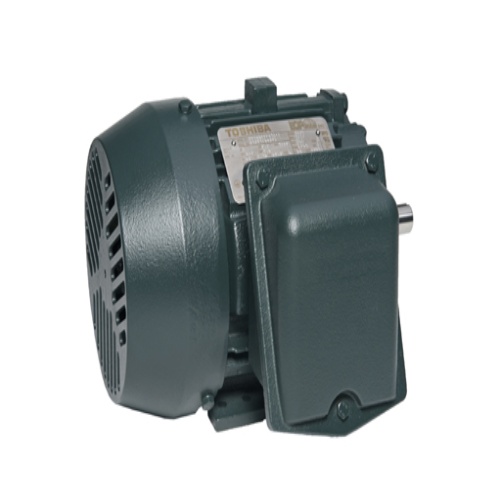

Toshiba F5006FLG3OMHD Standard IEEE 840 Motor 500 HP 575 Volt 3 Phase

The Toshiba EQP Global 840 Motor with 575 Volt, 3 Phase, 500 HP. Excellent quality with oversized 300 series bearings and low temperature rise to extend life of motor. Specifically addressed the needs of chemical industries, and mills using many of the IEEE841 features.

Specifications
Motor Enclosure Type	Totally Enclosed Fan Cooled
Motor Voltage Phases	3 Phase
Motor Insulation Class	Class F Insulation
Motor Frame Model	5810US
Motor Horsepower	500 HP
Motor Voltage	575 Volt
Motor RPM's	1200 RPM
Motor Frequency	60 Hz
Motor Duty Cycle	Continuous Duty
Manufacturer	Toshiba Motors
Motor Frame Construction	Cast Iron
Motor Amperage (Full Load)	477 Amp
