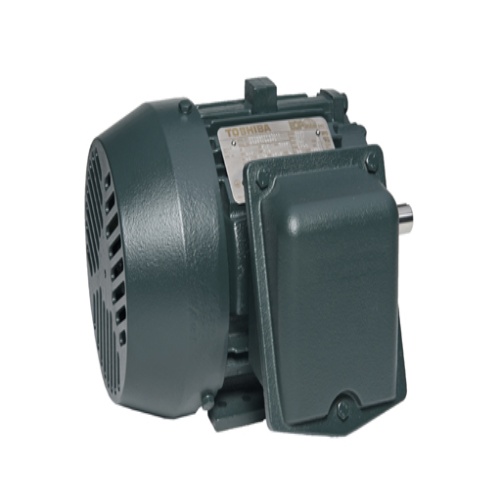

Toshiba F5006FLG3BMHD Standard IEEE 840 Motor 500 HP 460 Volt 3 Phase

Toshiba F5006FLG3BMHD Standard IEEE 840 Motor 500 HP 460 Volt 3 Phase Totally Enclosed Fan Cooled 1200 RPM 592 Amp Continuous Duty Cast Iron Frame with Class F Insulation.
Normally In Stock! Order now!
Condition: New

Usually ships Same Day or Next Day
Price: $88898.45
Sale Price: $74632.03
Add to JobAdd to FavoritesAdd to Quick Quote
The Toshiba EQP Global 840 Motor with 460 Volt, 3 Phase, 500 HP. Excellent quality with oversized 300 series bearings and low temperature rise to extend life of motor. Specifically addressed the needs of chemical industries, and mills using many of the IEEE841 features.
Specifications
Motor Enclosure Type Totally Enclosed Fan Cooled
Motor Voltage Phases 3 Phase
Motor Insulation Class Class F Insulation
Motor Frame Model 5810US
Motor Horsepower 500 HP
Motor RPM's 1200 RPM
Motor Frequency 60 Hz
Motor Duty Cycle Continuous Duty
Motor Voltage 460 Volt
Manufacturer Toshiba Motors
Motor Frame Construction Cast Iron
Motor Amperage (Full Load) 592 Amp
