Code: 3111

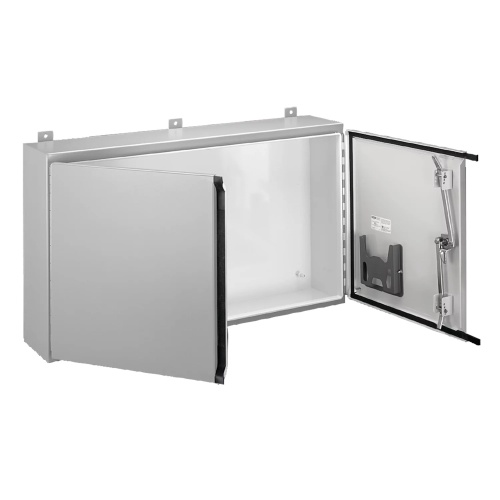

nVent Hoffman A426012WFALP Steel Enclosure
nVent Hoffman A426012WFALP 42" x 60" x 12" Type 12 Indoor Wall Mount Mild Steel Two Door Enclosure has overlaping doors with continuous hinge and 3-point latch with locking handle. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$3169.98
Sale Price
$2641.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A426012WFALP Steel Enclosure continuous Hinge Two Door Steel Enclosure with handle, Type 12 indoor with key locking handle with 3-point latch. Ease of installation and access to full-width internal panel. Overlapping door design allows easy access includes data pocket and bonding provisions in door with stay in place gasket for tight seal. Studs for adding backplate for intalling equipment. Frmed body flange channels away liquids.
Specifications
Enclosure Hinge Type
Standard Hinge
Enclosure Interior Color
White
Enclosure Depth
12"
Enclosure Interior Color
Gray
Enclosure Composition
Painted Steel
Enclosure Height
42"
Enclosure Width
60"
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Enclosure Lock Type
Keylock
Enclosure Latch Type
3-Point
Features
Removable door with continuous hinge
External formed body flange channels away liquids
Gasketed overlapping doors eliminate need for center post
Oil-tight key-locking handle with 3-point latch
External welded-on mounting brackets for easy installation
Seams continuously welded and ground smooth
Removable heavy gauge continuous hinge pin
Body is white inside with ANSI 61 grey finish outside
Bonding provision on both doors
Collar studs for mounting optional panels
Data pocket is high-impact thermoplastic
Door is ANSI 61 grey inside and outside
Downloads
Hoffman A426012WFALP 2D DXF CAD.zipHoffman A426012WFALP 3D STEP CAD.zipHoffman A426012WFALP CAD Drawing.zipHoffman A426012WFALP CSA Certification.pdfHoffman A426012WFALP Declaration of Compliance.pdfHoffman A426012WFALP Dimension Drawing.gifHoffman A426012WFALP Enclosure Alterations Manual.pdfHoffman A426012WFALP Instruction Manual.pdfHoffman A426012WFALP Spec Sheet.pdfHoffman A426012WFALP UL Certification.pdfHoffman A426012WFALP User Manual.pdf
