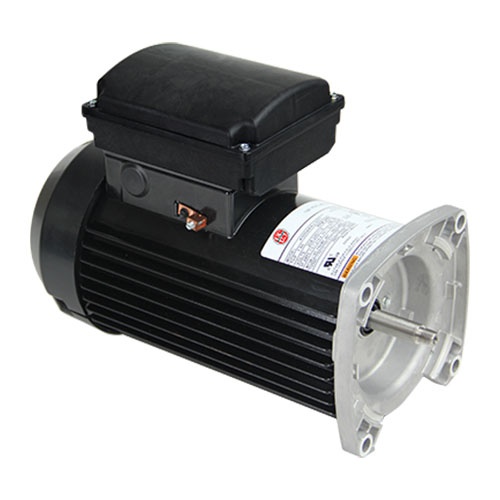

Nidec TEQ225 - TEFC, 3600 RPM, 2.25 HP

Nidec TEQ225 - The AQUA-SHIELD PRO® motors are premium, energy-efficient pool and spa motors. They feature a switchless design, finned aluminum frame, and a 5.5" frame diameter (Category "S" & "J"). Available in Square Flange and C-Flange options, these motors offer total horsepower ratings. With a 50°C ambient rating and a 300 series stainless steel shaft, they are designed for continuous duty in demanding conditions. The motors have a totally enclosed, fan cooled IPX5 enclosure that protects against water jets and minimizes moisture intrusion. They are thermally protected, Class B insulated, and feature triple bearing protection and a finned aluminum frame for efficient operation and heat dissipation. The AQUA-SHIELD PRO® motors are the ideal choice for reliable and efficient performance in wet and humid pool and spa environments.

Specifications
Motor Enclosure Type	Totally Enclosed Fan Cooled
Motor Frequency	60 Hz
Motor RPM's	3600 RPM
Motor Voltage	115 Volt
Motor Voltage	208-230 Volt
Motor Insulation Class	Class B Insulation
Manufacturer	Nidec
Motor Horsepower	2.25 HP
Motor Frame Model	48Y
