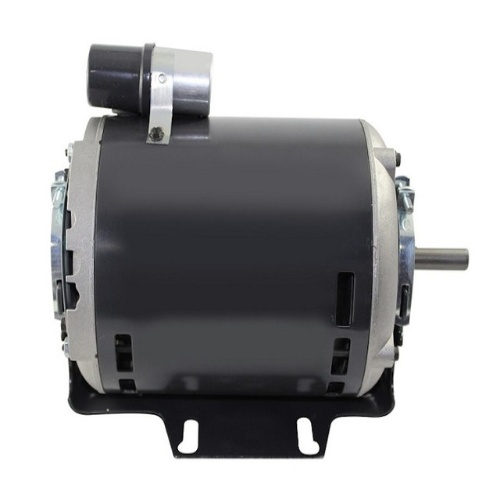

Nidec SPH20FLC1 - Open Drip Proof, 3600 RPM, 2 HP

Nidec SPH20FLC1 - The Thru-Bolt Pool and Spa Motors with a 5.5" frame diameter offer reliable performance for pool and spa applications. These motors feature an open dripproof design and a thru bolt mount for easy installation. They are Class F insulated and built with 1081, 1563, and 1795 designs to meet various specifications. With a rigid base and continuous duty operation, these motors are durable and can handle demanding conditions. The motors have a 3 o'clock conduit and a shaft thread of 3/8-16 UNC 2A RH. They are thermally protected for added safety. With a 3 1/2" shaft height and a 500°C ambient rating, these motors are designed to withstand high temperatures. The Thru-Bolt Pool and Spa Motors provide reliable and efficient performance for pool and spa systems.

Specifications
Motor Horsepower	2 HP
Motor Frequency	60 Hz
Motor Voltage	230 Volt
Motor RPM's	3600 RPM
Manufacturer	Nidec
Motor Enclosure Type	Open Drip Proof
Motor Frame Model	48Y
