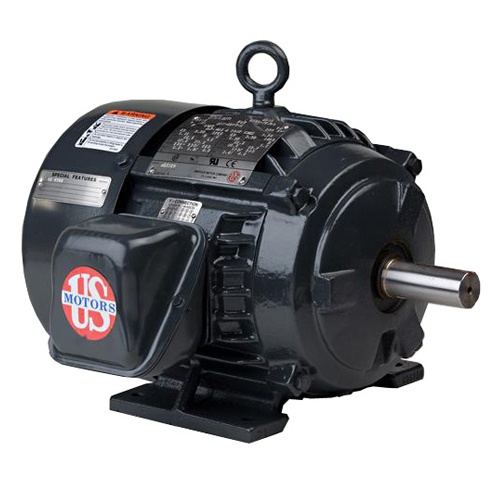

Nidec CW75V2E2 - TEFC, 3 Phase, 75 HP

Nidec CW75V2E2 - The Stock Cooling Tower Duty Three Phase motors are designed for harsh operating conditions with high humidity in commercial and industrial applications such as cooling towers and evaporative condensers. They feature INVERTER GRADE® insulation exceeding NEMA® MG-1 Part 31 standard, Class F insulation, and a cast iron frame. The motors have double-sealed bearings, double drilled feet for flexible mounting, and meet NEMA® Design B performance. They are inverter compatible with a 10:1 variable torque speed range and are coated with CORRO-DUTY® motor paint for enhanced durability. The motors meet IP55 classification and have a 1.15 service factor.

Specifications
Motor Enclosure Type	Totally Enclosed Fan Cooled
Motor Voltage Phases	3 Phase
Motor Insulation Class	Class F Insulation
Motor Frame Model	365T
Motor Horsepower	75 HP
Motor Frequency	60 Hz
Motor Voltage	230 Volt
Motor Voltage	460 Volt
Motor RPM's	1800 RPM
Motor Voltage	200 Volt
Motor Frequency	50 Hz
Motor Voltage	400 Volt
Motor Construction	Cast Iron
Manufacturer	Nidec
