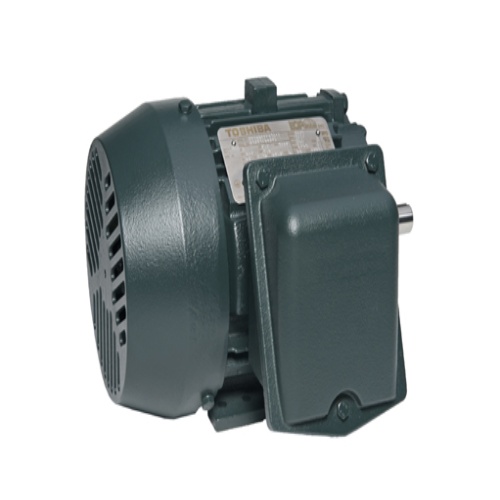

Toshiba Y752XSSC44A-P Standard IEEE 840 Motor 7.5 HP 575 Volt 3 Phase
Normally In Stock
Code: 30899
Toshiba Y752XSSC44AP Standard IEEE 840 Motor 7.5 HP 575 Volt 3 Phase Totally Enclosed Fan Cooled 3600 RPM 8 Amp Continuous Duty Cast Iron Frame with Class F Insulation.
Condition: New
Usually ships Same Day or Next Day$1418.76
Sale Price
$1182.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The Toshiba EQP Global 840 Motor with 575 Volt, 3 Phase, 7.5 HP. Excellent quality with oversized 300 series bearings and low temperature rise to extend life of motor. Specifically addressed the needs of chemical industries, and mills using many of the IEEE841 features.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
7.5 HP
Motor Frame Model
213TC
Motor Voltage
575 Volt
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor RPM's
3600 RPM
Manufacturer
Toshiba Motors
Motor Frame Construction
Cast Iron
Motor Amperage (Full Load)
8 Amp
Features
The Toshiba EQP Global ® 840 motor series serves as a cost-effective alternative to meet key features of the 841 specifications, specifically designed for the mill and chemical industries.
It features a robust, totally enclosed fan cooled (TEFC) design with premium construction.
The EQP Global 840 series has a double shaft sealed arrangement for frames 324-365T.
Frames 404T and above feature labyrinth seals on both ends.
These features provide an IP56 rating, protecting the motor against moisture and contaminants entering the enclosure.
A complete heavy-duty cast-iron construction extends the motor’s operational life and minimizes maintenance requirements, reducing downtime.
The Toshiba EQP Global 840 motor series provides a reliable and durable solution for industrial applications.
