Code: 306919

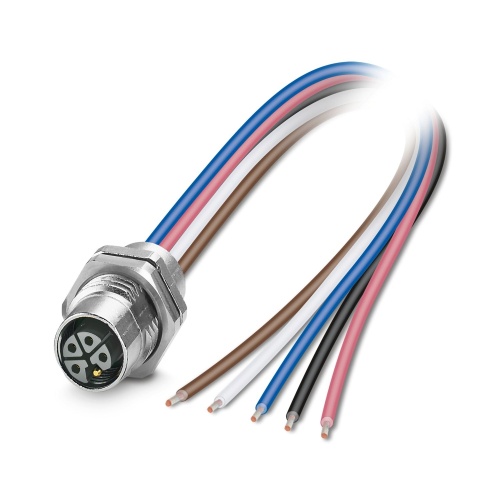

Phoenix Contact 1238575 Device connector rear mounting SACC-DSI-M12FSL4FE-M16XL/0,5GRX
Normally In Stock
Phoenix Contact 1238575 - 5 Positions - CuZn - 20 Amp - 48 V - IP67 - Individual Wire Connection - SPEEDCON Locking - M23
Condition: New
Usually ships Same Day or Next Day $36.47
Sale Price
$30.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1238575 The device connector features a rear mounting design with a power socket that accepts M12-Standard cables with an L coding on the free end of the cable. The mounting bracket uses M16 x 1.5 screws, and individual wires are enclosed in PEX litz wire cabling with a cable length of 0.5m and a cross-sectional area of 2.50mm2. This product meets lead-free requirements according to RoHS II standards, excluding exemption 6c, which specifies a maximum lead content of less than 0.1%.
Specifications
Connector Amperage
20 Amp
Connector Material
Cuzn
Connector protection
IP67
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Device Connector-Rear Mounting
Connector Voltage
48 Volt
Features
For compact devices: transmit high power in a confined space
Easy-to-install, optimized XL housing contour with wrench size 19
Mechanical tightening limitation for long-term-stable gasket
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
For high transmission safety: shield connection to the housing with optional EMC nut
