Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

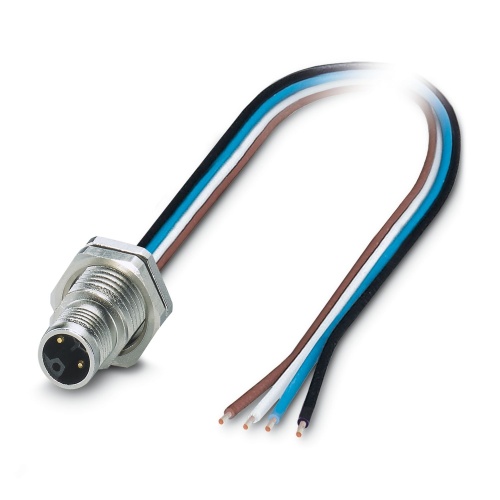

Phoenix Contact 1238565 Device connector rear mounting SACC-DSI-M12MSL-4CON-M16XL/1,5X
Normally In Stock
Code: 306909
Phoenix Contact 1238565 - 4 Positions - CuZn - IP67 - Individual Wire Connection - Standard, SPEEDCON Locking - M23
Condition: New
Usually ships Same Day or Next Day $40.46
Sale Price
$33.72
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1238565 This device connector features rear mounting and a power input via an M12 pin configuration on the free end of a cable. The mounting screw is an M16 x 1.5, allowing for individual wire connections. A PEX litz wire with a diameter of 2.50 mm² is used, and the product complies with RoHS II regulations by containing less than 0.1% lead (Pb).
Specifications
Connector Material
Cuzn
Connector protection
IP67
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Device Connector-Rear Mounting
Features
For compact devices: transmit high power in a confined space
Easy-to-install, optimized XL housing contour with wrench size 19
Mechanical tightening limitation for long-term-stable gasket
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
For high transmission safety: shield connection to the housing with optional EMC nut
Downloads
Code: 306909
Phoenix Contact 1238565 Device connector rear mounting SACC-DSI-M12MSL-4CON-M16XL/1,5X
$40.46
Sale Price
$33.72
MUST BUY IN PACKS OF 25
