Phoenix Contact 1238542 Device connector rear mounting SACC-DSI-M12MSM-5PE-M16XL/0,5X
Normally In Stock
Code: 306890
Phoenix Contact 1238542 - 6 Positions - CuZn - Black - 300 V - IP67 - Individual Wire Connection - M23
Condition: New
Usually ships Same Day or Next Day $28.93
Sale Price
$24.11
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

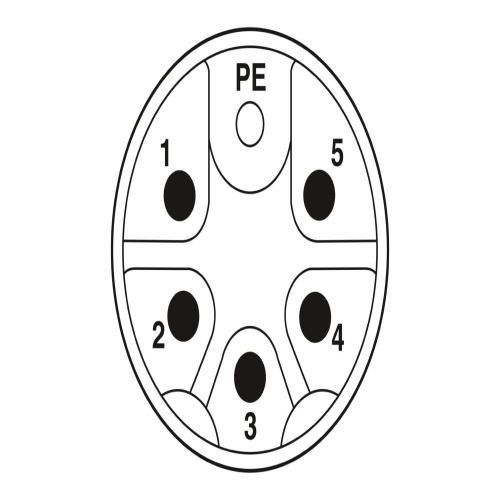

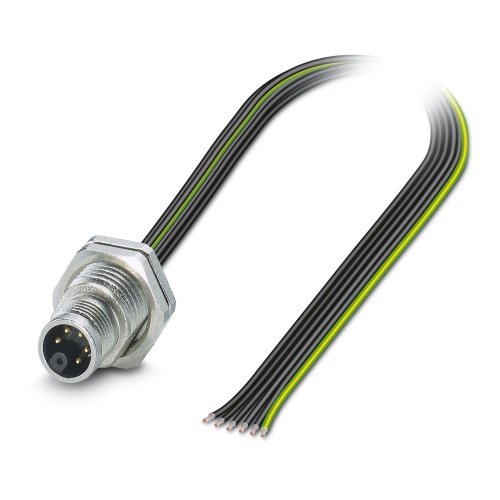

Phoenix Contact 1238542 The device connector features a rear mounting system and comes equipped with power capabilities. It has six positions for pins, arranged straight and utilizing the M12-Standard coding on the free end of the cable. The rear mounting is secured using an M16 x 1.5 screw. Individual wires are available, each measuring 0.5 meters in length and featuring a cross-sectional area of 1.31 mm2. These wires meet UL/cUL standards as stranded hook-up wire. The product also complies with RoHS II regulations regarding lead-free components, where the lead content is less than 0.1%.
Specifications
Connector Color
Black
Connector Material
Cuzn
Connector protection
IP67
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
6
Sub Component
Device Connector-Rear Mounting
Connector Voltage
300 Volt
Features
For compact devices: transmit high power in a confined space
Easy-to-install, optimized XL housing contour with wrench size 19
Mechanical tightening limitation for long-term-stable gasket
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
For high transmission safety: shield connection to the housing with optional EMC nut
