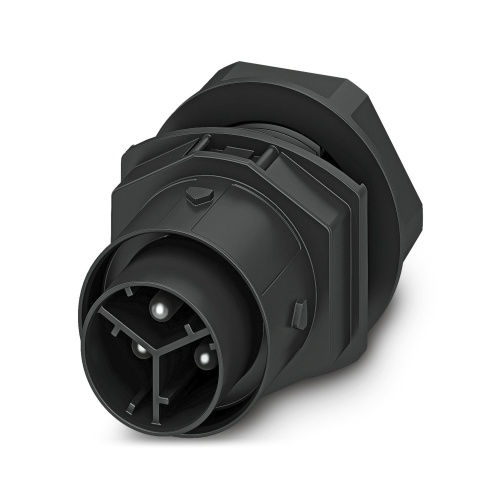

Phoenix Contact 1088679 Panel feed-through IPD W 3P2,5 M M20 BK
Normally In Stock
Code: 306754
Phoenix Contact 1088679 - Panel feed-through - 3 Positions - Cu - 20 AWG - 20 Amp - 500 V - IP66 - Push-In Connection - Snap-In Locking
Condition: New
Usually ships Same Day or Next Day$12.43
Sale Price
$10.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1088679 The panel feed-through for connectors in the IPD product family features a push-in connection with two or more positions and includes pins ranging from 0.5 to 2.5mm², rated for 500V and up to 20A current, with a PA (positive) polarity designation and a black coding scheme denoted by 'P'.
Specifications
Component
Panel
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
3
Sub Component
Panel Feed-Through
Connector Voltage
500 Volt
Features
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
