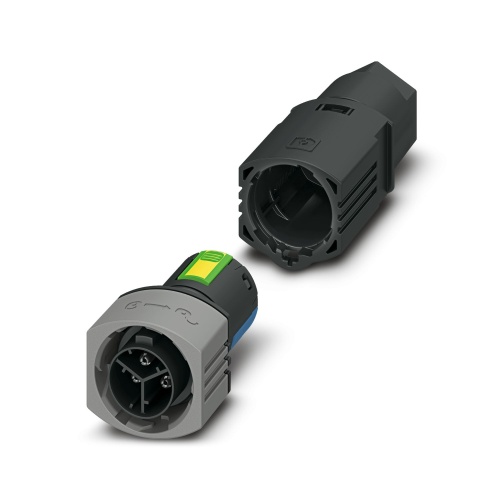

Phoenix Contact 1088664 Connector IPD PL 3P2,5 M BK
Normally In Stock
Code: 306753
Phoenix Contact 1088664 - Connector - 3 Positions - Cu - 20 AWG - 20 Amp - 500 V - IP66 - Push-Lock Connection - Snap-In Locking
Condition: New
Usually ships Same Day or Next Day$14.59
Sale Price
$12.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1088664 The connector product family referred to as IPD features a push-lock connection system with varying pin sizes ranging from 0.5mm² to 2.5mm², operating at a maximum voltage of 500V and current of 20A, with a color coding scheme denoted by the letter "P". The external cable diameter of this connector ranges between 6mm to 9mm in one set and 8mm to 13mm in another.
Specifications
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
3
Sub Component
Installation Connector
Connector Voltage
500 Volt
Features
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
