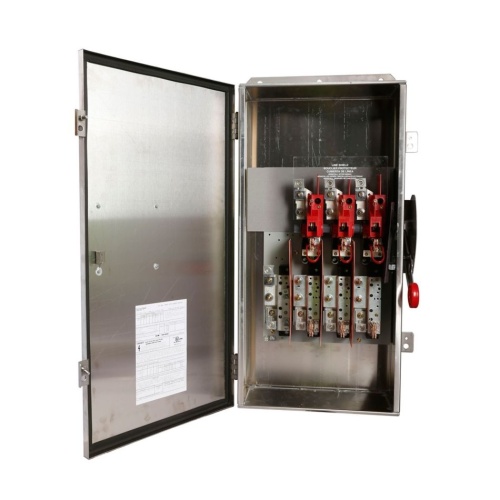

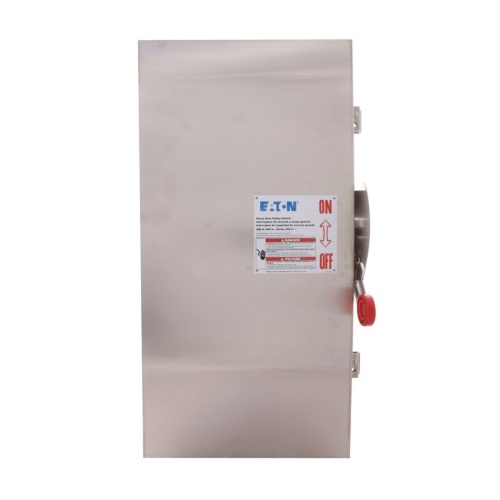

Eaton DH327FWK Fusible Disconnect Switch - 1200 Amp
Normally In Stock
Code: 306565
Eaton DH327FWK - Corrosion resistant - 800 A - NEMA 4X - 304 stainless steel - Class L - Fusible without neutral - 3-pole - 3-wire - 240 V - Max Hp: 100 hp (3PH @Std) - (4)#1/0 - (4)750 kcmil Cu/Al
Condition: New
Usually ships Same Day or Next Day$51710.22
Sale Price
$43091.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton DH327FWK - The heavy-duty switches offered are designed for demanding commercial and industrial applications, providing reliable performance and service continuity. Available in 30-1200 A range, these switches are suitable for service entrance and feature fusible and non-fusible options. With deionizing arc chutes, visible ON/OFF indication, and a mechanically interlocked cover, they offer enhanced safety and durability. The switches come in premium 316-grade stainless steel enclosures for corrosion resistance and have additional features like clear line shields, triple padlocking capability, and interlocking mechanisms. Compliant with UL listing and seismic qualifications, these switches ensure reliable operation in challenging industrial environments.
Specifications
Component
Fusible Disconnect Switch
Manufacturer
Eaton
Disconnect Enclosure Depth
12.75 In
Disconnect Enclosure Height
71.75 In
Disconnect Enclosure Width
24.9 In
Features
Fusible and non-fusible switches are 100% load break and 100% load make rated
Suitable for service entrance applications unless otherwise noted
Mechanically interlocked cover to prevent easy access when the switch is in the ON position
Visible ON/OFF indication
Available in 30 A–1200 A ratings
NEMA 1, 3R, 12, 4 and 4X enclosures for robust environmental protection
Standard NEC 230.62 (C) and UL 98 compliant line side barrier
Features optional viewing window that incorporates visible blade components
