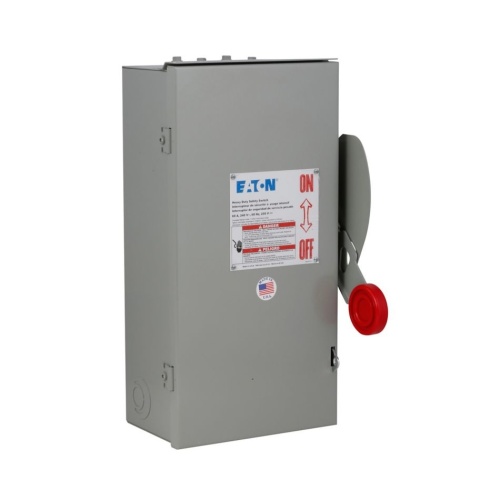

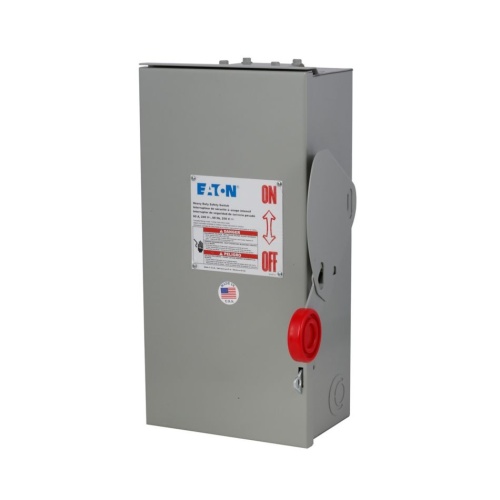

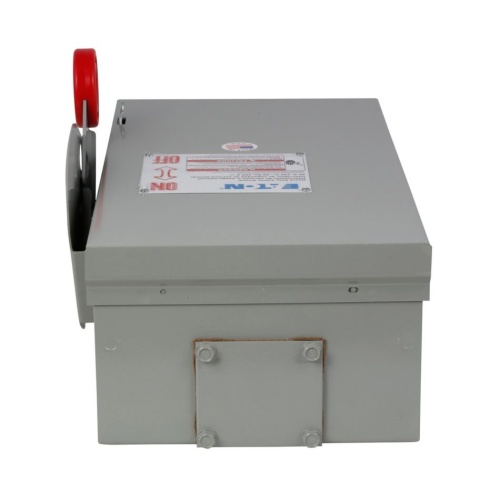

Eaton DH321NRK-CSA Fusible Disconnect Switch - 800 Amp
Normally In Stock
Code: 306134
Eaton DH321NRK - CSA - 30 A - NEMA 3R - Painted galvanized steel - Class H - Fusible with neutral - 3-pole - Four-wire - 240 V - #14 - #2 Cu/Al
Condition: New
Usually ships Same Day or Next Day$725.12
Sale Price
$604.27
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton DH321NRK-CSA - Auxiliary Power Heavy-Duty Safety Switch is designed to meet the requirements of NEC Article 210.63 for the installation of a 125 V, single-phase, 15 or 20 A rated receptacle outlet near heating, air-conditioning, and refrigeration equipment. With ratings ranging from 30-200 A, this safety switch eliminates the need for a separate 120 V circuit to the rooftop. It features a NEMA 3R outdoor enclosure and includes a 15A ground fault receptacle as a standard feature. The switch is horsepower rated and suitable for various applications.
Specifications
Poles
Three Pole
Enclosure NEMA Rating
NEMA 3R
Component
Non-Fusible Disconnect Switch
Manufacturer
Eaton
Disconnect Enclosure Width
9.5 In
Disconnect Enclosure Depth
16.8 In
Disconnect Enclosure Height
15.88 In
Voltage
600 VAC
Current
100 Amp
Features
Fusible and non-fusible switches are 100% load break and 100% load make rated
Suitable for service entrance applications unless otherwise noted
Mechanically interlocked cover to prevent easy access when the switch is in the ON position
Visible ON/OFF indication
Available in 30 A–1200 A ratings
NEMA 1, 3R, 12, 4 and 4X enclosures for robust environmental protection
Standard NEC 230.62 (C) and UL 98 compliant line side barrier
Features optional viewing window that incorporates visible blade components
