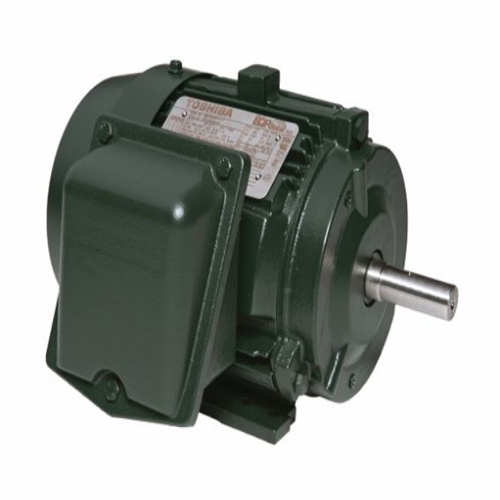

Toshiba 0752SDSC42B-P Severe Duty Motor 75 HP 575 Volt 3 Phase
Normally In Stock
Code: 30556
Toshiba 0752SDSC42B-P Severe Duty Motor 75 HP 575 Volt 3 Phase Totally Enclosed Fan Cooled 3600 RPM 69 Amp Continuous Duty Nema Design B Cast Iron Frame with Class F Insulation.
Condition: New
Usually ships Same Day or Next Day$8650.12
Sale Price
$7208.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The Toshiba EQP Global Severe Duty Motor with 575 Volt 3 Phase,75 HP, 69 Amp. Premium efficiency motor design enhancements on the frame, rotor, fan, and bearings. Toshiba's next generation cutting edge motor with premium quality and performance will meet or exceed the competitive demands of today's market.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
75 HP
Motor Frame Model
365TSC
Motor Voltage
575 Volt
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor RPM's
3600 RPM
Manufacturer
Toshiba Motors
Motor Frame Construction
Cast Iron
Motor Amperage (Full Load)
69 Amp
Features
The Toshiba EQP Global ® Severe Duty (SD) motor series is engineered to excel in a wide range of general-purpose industrial applications.
It features a robust, totally enclosed fan cooled (TEFC) design with premium construction.
The series is designed for durability, boasting an IP55 rating that effectively protects against moisture and contaminants, making it ideal for severe environments.
Its heavy-duty cast-iron frame, brackets, and t-box contribute to long-lasting performance and reliability.
Overall, the EQP Global Severe Duty series delivers exceptional performance and reliability as a high-quality motor choice for industrial needs.
