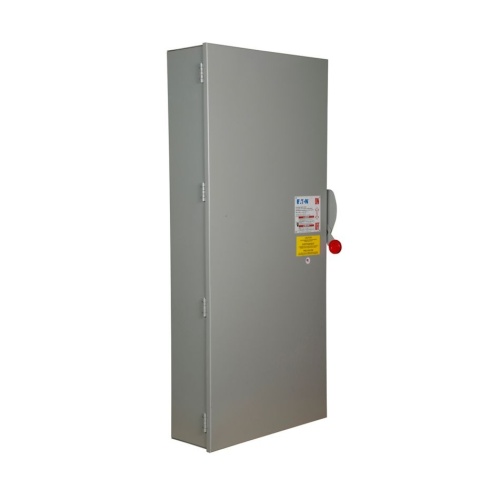

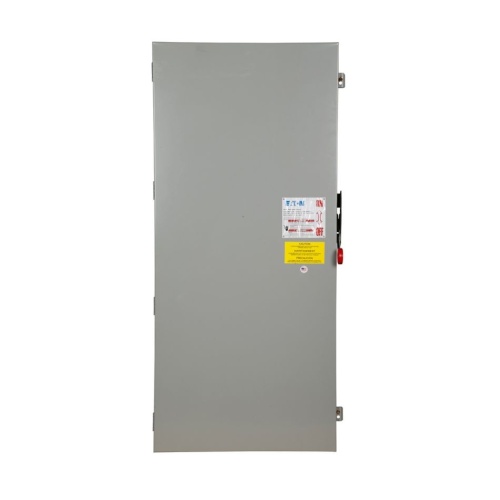

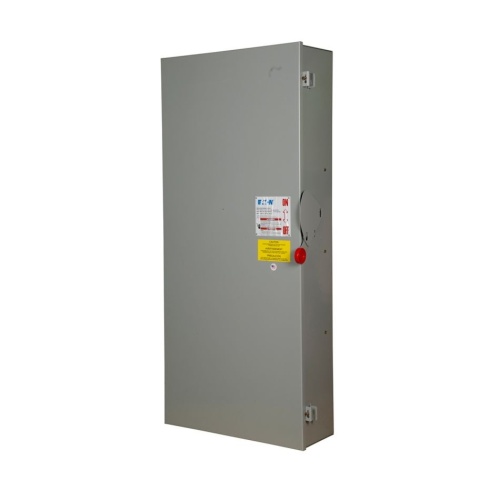

Eaton DH227FRKV Heavy Duty Safety Switch - Fusible With Neutral, ST, 800 Amp
Normally In Stock
Code: 303152
Eaton DH227FRKV - Single Throw - 800 Amp - NEMA 12/3R - 240 VAC - Two Pole - Painted Steel - 100-250 HP - Std. Fuse,Time Delay - 3PH - Enhanced Visible Blade - 11" x 9" x 18" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$13461.12
Sale Price
$11217.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton DH227FRKV - The heavy-duty switches offered are designed for demanding commercial and industrial applications, providing reliable performance and service continuity. Available in 30-1200 A range, these switches are suitable for service entrance and feature fusible and non-fusible options. With deionizing arc chutes, visible ON/OFF indication, and a mechanically interlocked cover, they offer enhanced safety and durability. The switches come in premium 316-grade stainless steel enclosures for corrosion resistance and have additional features like clear line shields, triple padlocking capability, and interlocking mechanisms. Compliant with UL listing and seismic qualifications, these switches ensure reliable operation in challenging industrial environments.
Specifications
Enclosure Composition
Painted Steel
Enclosure Disconnect Type
Single Throw Safety Switch
Enclosure NEMA Rating
NEMA 3R
Enclosure NEMA Rating
NEMA 12
Component
Fusible Disconnect Switch
Disconnect Enclosure Width
9 In
Disconnect Enclosure Height
11 In
Manufacturer
Eaton
Disconnect Enclosure Depth
18 In
Current
400 Amp
Voltage
600 VDC
Features
Fusible and non-fusible switches are 100% load break and 100% load make rated
Suitable for service entrance applications unless otherwise noted
Mechanically interlocked cover to prevent easy access when the switch is in the ON position
Visible ON/OFF indication
Available in 30 A–1200 A ratings
NEMA 1, 3R, 12, 4 and 4X enclosures for robust environmental protection
Standard NEC 230.62 (C) and UL 98 compliant line side barrier
Features optional viewing window that incorporates visible blade components
