Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

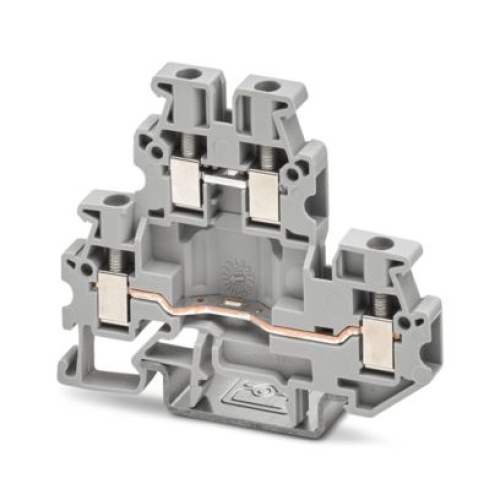

Phoenix Contact 3249013 Mini feed-through terminal block MUTTB 2,5
Normally In Stock
Code: 301623
Phoenix Contact 3249013 MUTTB 2,5 Mini feed-through terminal block
Condition: New
Usually Ships Same day or Next Day$6.60
Sale Price
$5.50
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3249013 A mini feed-through terminal block has a nominal voltage of 500 V and can handle up to 22 A of current, with screws used for connection. The rated cross-sectional area is 2.5 mm2, but it can accommodate smaller or larger cross-sections between 0.2 mm2 and 4 mm2. The mounting types include NS 15, NS 35/7.5, NS 35/15, and the terminal block is typically gray in color.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Jumper Number of Positions
2
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
22 Amp
Sub Component
Miniature Terminal Block
Features
Fixed bridges and test sockets can be used on both levels
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Clear arrangement thanks to marking of all terminal points
Easy potential distribution thanks to standardized plug-in bridges
