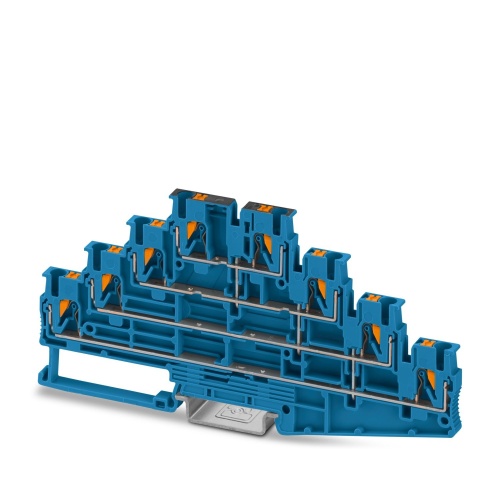

Phoenix Contact 1336409 Multi-level terminal block PT 2,5-4PV BU
Normally In Stock
Code: 301609
PT 2,5-4PV BU Phoenix Contact 1336409 PT 2,5-4PV BU Multi-level terminal block
Condition: New
Usually Ships Same day or Next Day$13.22
Sale Price
$11.02
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

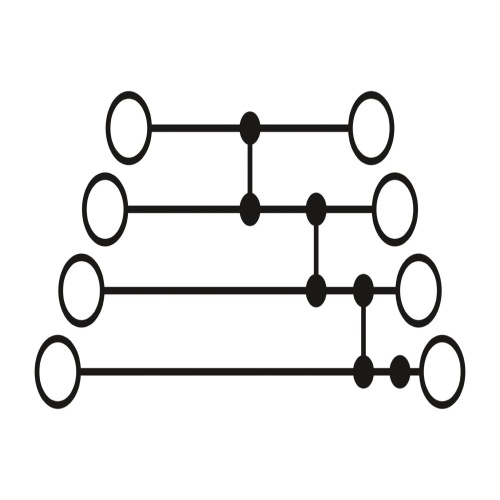

Phoenix Contact 1336409 The terminal block features a multi-level design with an equipotential bonder, accommodating nominal voltages of 500 V and currents of up to 18 A. It has eight connections and can be configured in three positions, utilizing a push-in connection method. The cross-sectional area is rated at 2.5 mm2 but spans from 0.14 mm2 to 4 mm2. The terminal block is mounted using the NS 35/7,5 and NS 35/15 types, with a blue color designation.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
8
Terminal Block Number of Levels
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Push-In Connection
Jumper Number of Positions
3
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
18 Amp
Sub Component
Multi-Level Terminal Block
Features
Universal use – connection of small to very large conductor cross-sections
Space-saving with a compact design, multi-conductor terminal blocks, and multi-level terminal blocks
Easy potential distribution with function shafts on each level
Maximum clarity with large marking surfaces
Reduction in logistics costs with the uniform CLIPLINE complete system accessories
