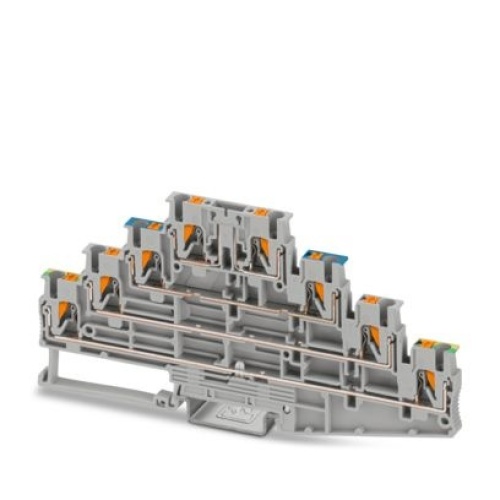

Phoenix Contact 1336374 Protective conductor terminal block PT 2,5-PE/L/N/TG
Normally In Stock
Code: 301602
PT 2,5-PE/L/N/TG Phoenix Contact 1336374 PT 2,5-PE/L/N/TG Protective conductor terminal
Condition: New
Usually Ships Same day or Next Day$18.67
Sale Price
$15.56
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1336374 A protective conductor terminal block features eight connections with four positions and employs a push-in connection method for both the protective conductor and rated cross-section of 2.5mm² to 4mm². The feed-through level also has a rated cross-section of 2.5mm² to 4mm², which is connected using a push-in method. These terminal blocks are mounted using NS35/7,5 or NS35/15 and have a gray color.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Push-In Connection
Jumper Number of Positions
4
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
18 Amp
Sub Component
Ground Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
