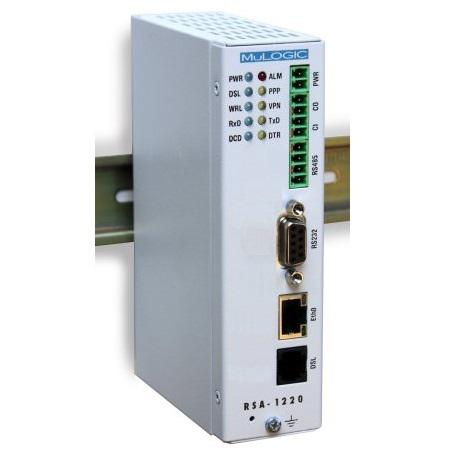

Mulogic RSA-1220M/Vr1 Industrial ADSL Router 12-24V
Normally In Stock
Code: 30110
Mulogic RSA-1220M/Vr1 Industrial ADSL/VDSL2 Router 12-24V with a ruggedized metal case, din rail mount, 2 serial ports and 1 Ethernet Port. This device allows you to maintain connectivity with a serial RS232 or RS485 port while having an Ethernet interface to other devices such as remote surveillance cameras. Serial ports support SCADA protocols like Modbus RTU/ASCII, DNP3 and IEC60870-5-101. Can be installed without the need for replacing the telephone line. Just add ADSL service to the existing telephone line.
Condition: New
Usually ships within 2 days$698.24
Sale Price
$581.87
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Mulogic RSA-1220M/Vr1 Industrial Remote Site Access ADSL/VDSL2 Router 12-24V. For access to remote locations such as water and power substations or traffic management systems and various other remote sites with automation equipment. Extended temperature range suitable for operating at ambient temperatures ranging from -40°F to +158°F. Two serial port gateways for remote serial data (TCP/IP or UDP/IP) to serial ports (one RS232, one RS485) with data rates from 300bits to 115.2 kbps. Ethernet port support SCADA protocols like Modbus/TCP, DNP3/IP and IEC60870-5-104 are 10/100baseT, Auto-MDI/MDIX. All can be used as LAN or WAN port.
Specifications
(Modem/Router) Data Type
Ethernet
(Modem/Router) Ethernet Ports
1 Ethernet Port
(Modem/Router) USB Ports
No USB 2.0 Ports
(Modem/Router) Mounting
Din Rail
(Modem/Router) Data Type
Serial
(Modem/Router) Serial Ports
2 Serial Ports
(Modem/Router) Communication Medium
DSL Line (ADSL)
(Modem/Router) Case Type
Steel
(Modem/Router) Data Rate Serial
115.2 Kbps
(Modem/Router) Downstream Rate
24 Mbps
(Modem/Router) Type
ADSL Router
(Modem/Router) Upstream Rate
3 Mbps
(Modem/Router) Replaces
Leased Line Modems
(Modem/Router) Replaces
Dial Up Modems
(Modem/Router) Voltage Rating
12 Volt
Manufacturer
Mulogic
(Modem/Router) Voltage Rating
24 Volt
Component
ADSL Router
Features
Access router with VDSL2/ADSL2+ WAN port.
One hardware version for ADSL Annex A (PSTN overlay) and Annex B/J (ISDN overlay).
ADSL Downstream rates up to 24 Mbit/s, upstream rates up to 1.4 Mbit/s (Annex A/B). Upstream rates up to 3 Mbit/s in Annex A/M and Annex B/J modes.
VDSL2 Downstream rates up to 110 Mbit/s, upstream rates up to 50 Mbit/s.
ADSL Encapsulation Protocols: PPPoA, PPPoE, IPoA, MER/IPoE and CLIP.
RFC4638 support for allowing PPPoE MTU size up to 1500.
Ethernet port: 10/100baseT, Auto-MDI/MDIX.
IEEE 802.1Q VLAN support for PTM, and Ethernet LAN interfaces. 2
Ethernet port supports SCADA protocols like Modbus/TCP, DNP3/IP and IEC60870-5-104.
Two serial port gateways for remote serial data (TCP/IP or UDP/IP) to serial ports (one RS232, one RS485). Data rates from 300 to 115200 bit/s.
Serial ports support SCADA protocols like Modbus RTU/ASCII, DNP3 and IEC60870-5-101.
IPsec and OpenVPN tunnels for secure communication with Ethernet and serial ports.
GRE tunnels for linking multicast protocols like RIPv2 and OSPF over IPsec tunnels.
Secure Layer-2 Ethernet bridging over OpenVPN tunnels.
Secure access to Serial port gateways. (VPN tunnel or access restrictions in firewall).
Up to 4 separate LAN networks (over VLAN) with individual DHCP servers.
Static routing and dynamic routing (BGP, OSPF, RIPv1 and RIPv2).
Dynamic NAT (IP masquerading) for outgoing connections.
Static NAT (Port forwarding) for incoming connections.
Stateful firewall for access control, data forwarding and rate limiting (DoS protection).
Device Management services: HTTP/HTTPS, CWMP(TR-069), IXplatform, SNMP and CLI.
Firmware updates via local Ethernet port, remotely via HTTP/HTTPS (upload or download), invoked by CWMP(TR-069), SNMP, web interface or CLI command.
Role-based access control for administrative access.
RADIUS support for user authentication. Access roles determined by RADIUS attributes.
IEEE 802.1X Port-based Network Access Control
Certificate management and enrolment: Manual or SCEP.
System alerting by means of: Email, SNMP traps and SMS.
Independent watchdog/reset controller for monitoring vital system functions.
Dry contact sensor (input) with status reporting and alerting via SNMP, Email or SMS.
Dry contact (output) for automatic alarm/status indication or remote control.
Temperature sensors (system and WWAN) with status reporting via SNMP and HTTP and alerting via SNMP trap, Email or SMS.
Isolated supply voltage input for industrial applications (suitable for AC and DC).
Supply voltage ranges: 11-36Vdc/11-28Vac, 18-60Vdc/18-30Vac or 18-72Vdc.
Extended operating temperature range: -40°C to +70°C
Din-Rail or panel mounting.
