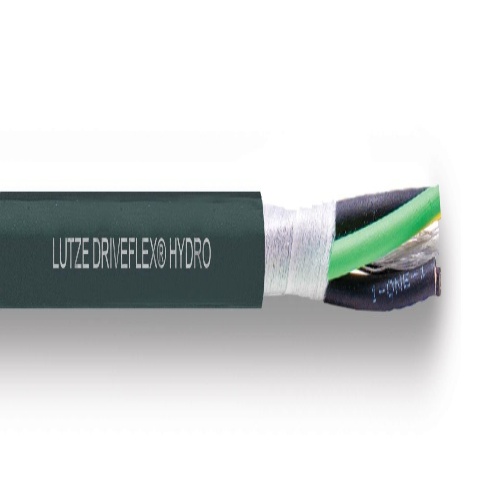

Lutze A1100604 Driveflex® Hydro VFD Cable - AWG 6, PVC
Normally In Stock
Code: 299579
Lutze A1100604 - Driveflex® VFD Cable - Black - AWG 6 - 4×Cable OD Bending Radius - 4 Conductors - Cu-Wire Tin-Plated - SOLD PER FOOT
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $100 FROM LUTZE FOR PRODUCT TO SHIP
ALL CUT TO LENGTH CABLE IS NON-CANCELLABLE, NON-RETURNABLE
$18.76
Sale Price
$15.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Lutze A1100604 - Motor cable designed for harsh down-well environments and wet operating conditions,Motor supply cable to connect power to 3-phase-motors, VFDs and servo drives,Thermoset XLPE offering superior overload and short-circuit temperature,Type XHHW-2 insulation offering smaller ODs for submersible pump and special VFD applications,Compliant with NFPA 79 requirements,TC-ER-JP for use with cable trays without conduit, which can reduce installation costs in industrial environments,WTTC – wind turbine tray cable rating for use in wind power generation,Dry, damp or wet conditions
Specifications
Jacket Material
PVC
Number of Conductors
4
Conductor
Cu-Wire Tin-Plated
Manufacturer
Lutze
Bending Radius
4×Cable OD
Jacket Color
Black
Wire Size (AWG)
AWG 6
Conductor Insulation
XLPE
Conductor Insulation
XHHW-2
Conductor Insulation
Wet/Dry
Cable
VFD Cable
Rated Voltage (Cable)
600 Volt
Rated Voltage (Cable)
1000 Volt
Temperature Range (Cable)
-40 °C To +90 °C
Weight (Cable)
600 Lbs/Mft
Features
Flexible XLPE conductors
Reduced cable diameter
High insulation resistance
Low capacitance cable
Specially formulated jacket for oil resistance and easy strip design
Non-wicking fillers
Ecolab certified resistance to common cleaning agents and chemicals used in food and beverage washdown procedures
Crush impact resistant
Gas/vapor-tight sheath per UL 1277
Sunlight resistant
Flame retardant
Direct burial
