Code: 299003

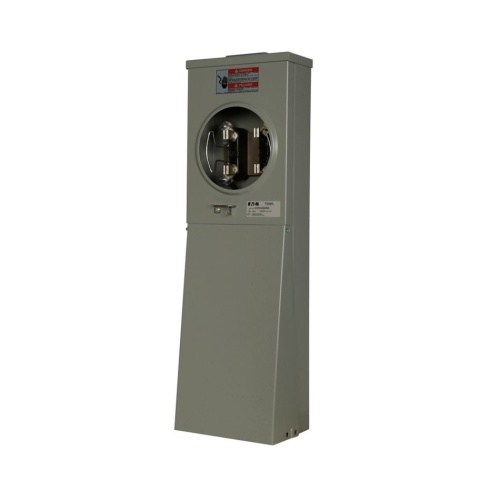

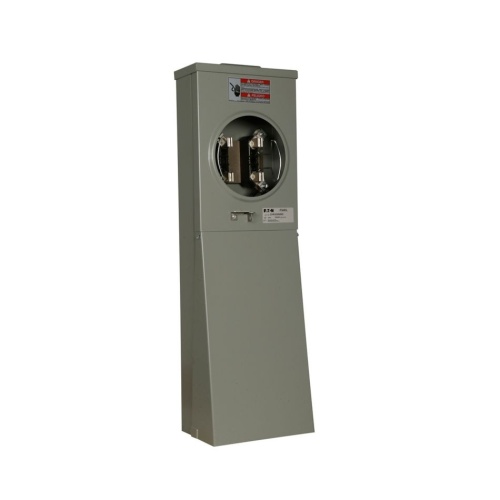

Eaton CHR3G9N9NS Metered-Ringless Power Outlet Panel
Normally In Stock
Eaton CHR3G9N9NS - Surface Mounted - 4 Circuits - Receptable Center: NEMA 5-20R2GFI - Left: NEMA 14-30R - Right: NEMA 5-20R2GFI
Condition: New
Usually ships Same Day or Next Day$1185.88
Sale Price
$988.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
CHR3G9N9NS • Surface mount: User mounts unit to a post
• 100 percent galvanized steel with baked-on polyester powder coating
• NEMA 3R construction for rainproof installation
• Utility grade metering available for construction site or RV park applications
• Door swings up when opening and allows cords to remain connected when closed
• Removable upper deadfront cover for easy incoming wire connections to breaker terminals
• Lower deadfront cover can be removed for easy routing of incoming wires or receptacle changeouts
• Three-point mounting
• One-piece case back for metered and unmetered panels
• Lighted option for site location and nighttime panel operations
• GFI circuit breakers available through 50 A
• Unique steel barrier prevents unauthorized operation of breakers when door is closed and padlocked
• Units are factory wired and assembled
Specifications
Manufacturer
Eaton
Mounting
Surface
Circuits
4
Breaker Type 2
Non-GFI
Breaker Type 3
Non-GFI
Breaker Type 1
GFI
Receptable Center
NEMA 5-20R2GFI
Receptable Right
NEMA 5-20R2GFI
Receptable Left
NEMA 14-30R
Metering Status
Metered-Ringless
Component
Power Pedestal
Features
One-piece case back simplifies installation.
Door swings up and pushes in to lock into open position. Pull out and push down to close door, which makes for easy installation and maintenance.
Removable upper deadfront cover for easy incoming wire connections to breaker terminals.
Galvanized steel with baked-on polyester powder coating offers long-term durability in outdoor conditions.
Unique steel barrier prevents unauthorized operation of breakers when door is closed and padlocked.
