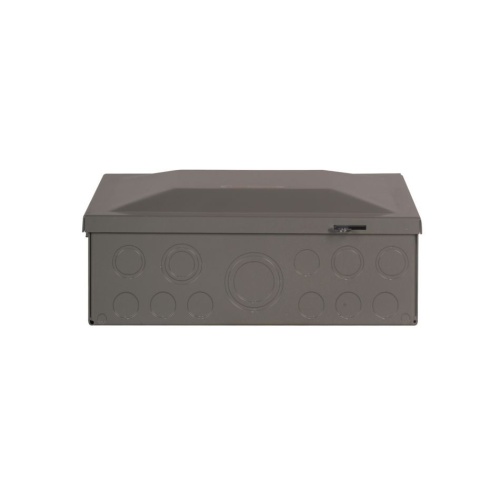

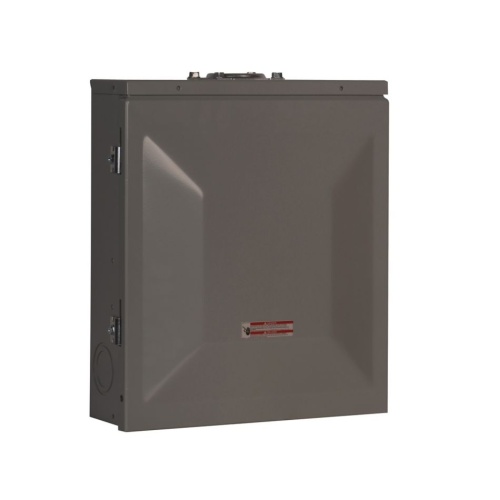

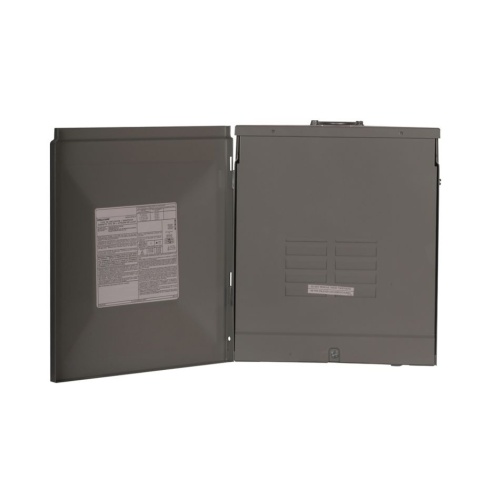

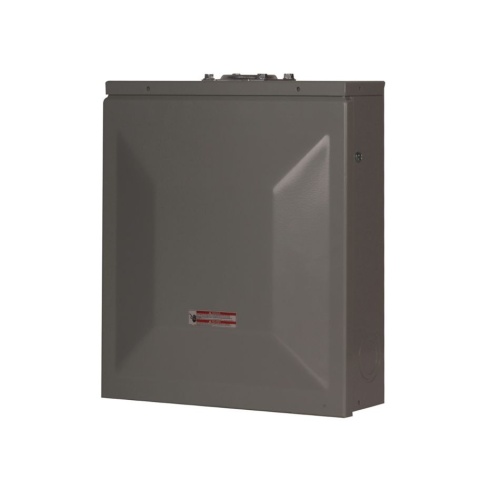

Eaton CH6L3125FP Main Lug Loadcenter - 125 Amp
Normally In Stock
Code: 298762
Eaton CH6L3125FP - Three Phase - 125 Amp - NEMA 1 - 120/240 VAC, 208Y/120 VAC, 240 VAC - 35 kAIC - CH Type Breaker - Copper Bus - 6 Spaces - 6 Circuits - 7 Frame - 4 Wires
Condition: New
Usually ships Same Day or Next Day$259.21
Sale Price
$216.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton CH6L3125FP -The CH Plug-on Neutral Loadcenter is a specialized enclosure designed to house branch circuit breakers and wiring for distributing power to individual circuits. It can serve as either a main breaker at the service entrance or a main lug sub-panel for adding circuits to an existing service. The main breaker acts as a service disconnect, protecting the entire panel, while the branch breakers safeguard the wires leading to specific electrical loads such as fixtures and outlets. Offering enhanced safety, ease of installation, and a clean, professional appearance, the CH Plug-on Neutral Loadcenter stands out from the competition, providing a quicker and more convenient solution.
Specifications
Amperage (Molded Case Breaker)
125 Amp
Maximum Voltage (Molded Case Breaker)
240 VAC
Maximum Voltage (Molded Case Breaker)
120 VAC
Manufacturer
Eaton
Interrupt Rating (Molded Case Breaker)
35 Ka
Component
Loadcenter
UL Listing (Molded Case Breaker)
UL 67
UL Listing (Molded Case Breaker)
UL 50
Frame Type (Molded Case Breaker)
7 Frame
Number of Wires
4
Number of Circuits
6
Number of Spaces
6
Features
Limited lifetime warranty on all CH loadcenters and circuit breakers.
One-piece silver flash plated copper bus provides superior conductivity throughout the entire product line.
Plug-on neutral design provides time and labor-savings by eliminating the pigtail.
CH 150-225 ampere main breakers are rated 25 KAIC providing contractors with the highest interrupting rating main breaker in the industry.
Unique sandalwood finish provides an aesthetically appealing, scratch resistant powder coating.
CH breakers include an industry exclusive "trip to off" feature that allows a homeowner to easily identify a tripped circuit breaker.
Mechanical flag box feature on CH breakers for easy trip indication.
