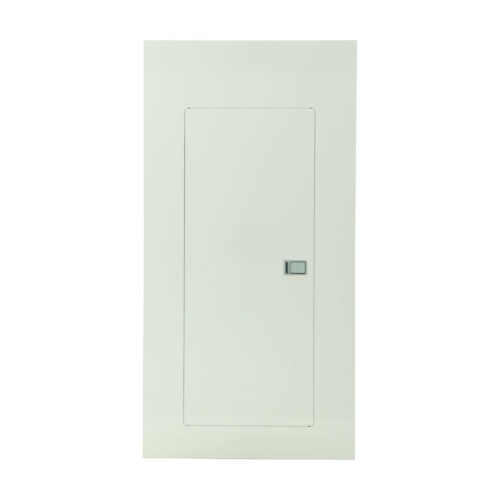

Eaton BRT3060L200RIS Main Lug Loadcenter - 200 Amp
Normally In Stock
Code: 298676
Eaton BRT3060L200RIS - Single Phase - 200 Amp - Riser panel - 120/240 VAC - 10 kAIC - BR Type Breaker - Aluminum Bus - 30 Spaces - 60 Circuits - 3 Wires
Condition: New
Usually ships Same Day or Next Day$3540.66
Sale Price
$2950.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton BRT3060L200RIS - Loadcenters are purpose-built enclosures that house branch circuit breakers and necessary wiring for efficiently distributing power to individual circuits. They can be equipped with a main breaker for service entrance or a main lug for adding circuits to an existing setup. The main breaker safeguards the entire panel and can act as a service disconnect. Meanwhile, the branch breakers protect the wires connected to specific electrical loads, such as fixtures and outlets. Introducing the Plug-on Neutral Loadcenters, Eaton's BR portfolio boasts a distinctive design that enhances safety, simplifies installation, and delivers a polished and professional end result
Specifications
Amperage (Molded Case Breaker)
200 Amp
Maximum Voltage (Molded Case Breaker)
240 VAC
Maximum Voltage (Molded Case Breaker)
120 VAC
Interrupt Rating (Molded Case Breaker)
10 Ka
Manufacturer
Eaton
Component
Loadcenter
UL Listing (Molded Case Breaker)
UL 67
UL Listing (Molded Case Breaker)
UL 50
Number of Spaces
30
Number of Wires
3
Number of Circuits
60
Features
Plug-on neutral design provides time and labor-savings by eliminating the pigtail
Twin neutral design located in wireway, away from circuit breakers, means easier wiring and balancing of the load
Extra 1.5-inch knock-out for bundling allows maximum wiring gutter space for ease of wiring in compliance with NEC requirements
Standard 14-3/8 inches (365.1 mm) wide enclosures fit snugly between wall studs
Tangential main knock-out eliminates the need for conduit offsets, which permits faster, easier installation
